TE Connectivity AMP Connectors 5102153-5 — Pin Headers

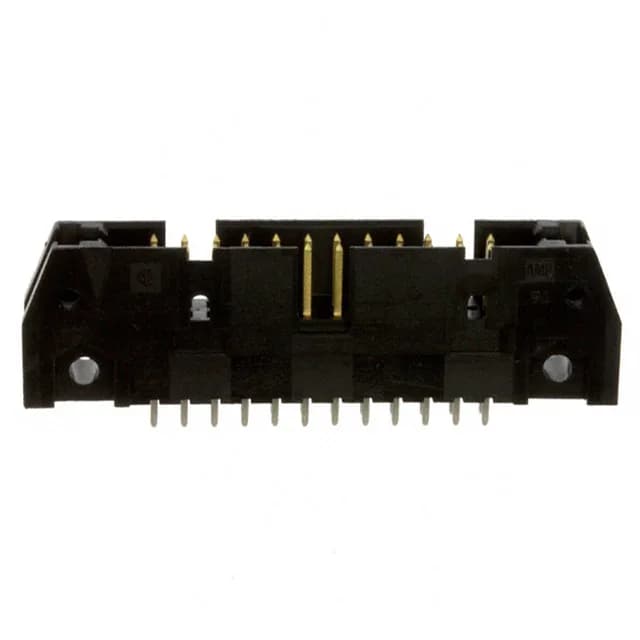

5102153-5 TE AMP-Latch Header 24 Pos 2.54mm Pitch

MPN5102153-5
Active

TE Connectivity AMP-Latch shrouded header, 24 circuits, 0.100" (2.54mm) pitch, through-hole solder termination, gold or gold-palladium mating finish, UL94 V-0 black housing with mounting flange.

$3.7500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5102153-5 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5102153-5 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-55°C ~ 105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk

All specifications

5102153-5 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions24
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 5102153-5 is a 24-position, dual-row vertical header from the AMP-Latch series, designed to mate with AMP-Latch IDC ribbon cable sockets. The 4-wall shrouding protects the male pins during blind mating and the integral mounting flange gives the board-level assembly a mechanical anchor against cable strain — the flange accepts a screw or rivet through the PCB, which is useful when the cable is routed through a panel or conduit.

Contact plating and mating cycle life

The solder tails are tin-plated at 100.0µin, which wets well in lead-free wave or hand-solder processes.

Frequently asked questions

Is the 5102153-5 compatible with AMP-Latch ribbon cable sockets?

Yes, this header is part of the AMP-Latch series and is designed to mate with AMP-Latch IDC sockets that accept 0.050" pitch ribbon cable. The 0.100" row spacing and 0.100" pitch align with the standard AMP-Latch interface.
