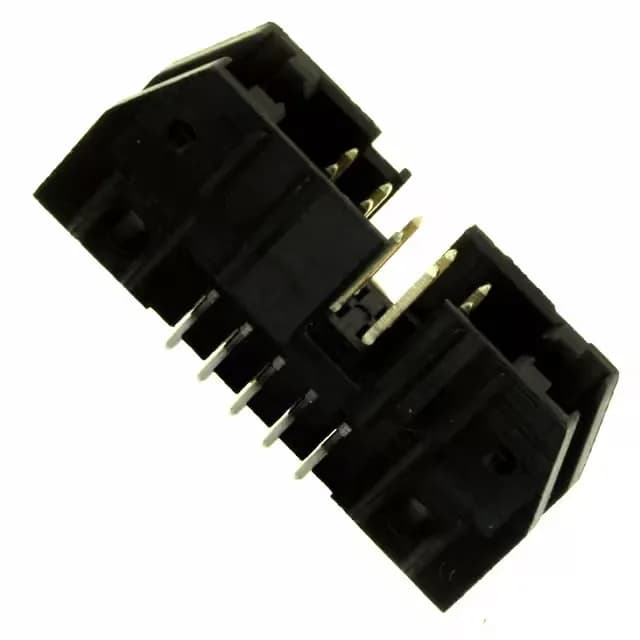

TE Connectivity AMP-Latch shrouded header, 10 positions, 0.100" (2.54 mm) pitch, dual-row, through-hole, gold mating finish, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5102154-1: The 30 µinch gold or gold-palladium mating finish supports repeated mating cycles typical of field-service or test applications.
Mates with TE AMP-Latch receptacles and standard 0.100" pitch IDC ribbon-cable connectors.
No direct pin-compatible replacement is listed. The closest functional alternative in the same series is 1379030-3, a 12-position right-angle version with friction lock and tin mating finish — different orientation, circuit count, and plating. Verify your board layout and mating half before substituting.
