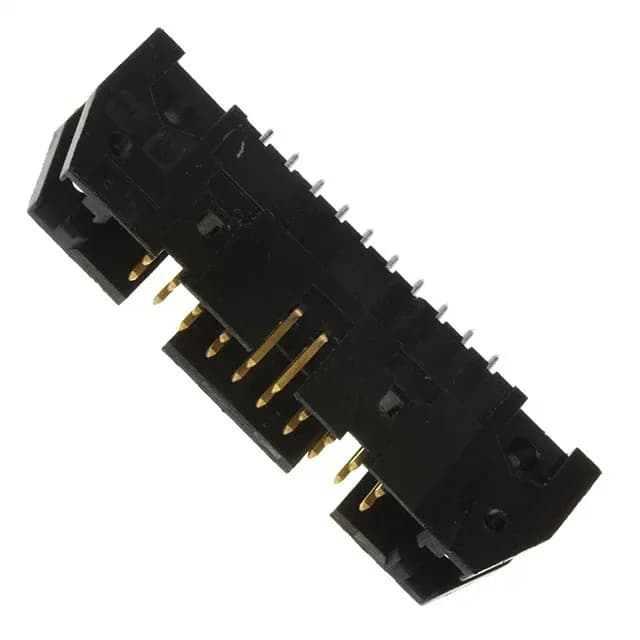

TE Connectivity AMP-Latch shrouded header, 20 positions, 2.54mm pitch, through-hole, vertical, gold-plated male pins, board-to-wire style.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5102154-4: This is a 20-circuit, 2-row, vertical through-hole header from the AMP-Latch series, designed for board-to-wire connections. Operating range spans -65°C to 105°C, and the UL94 V-0 housing suits equipment inside an enclosure requiring flame-rated materials.
5102154-4 is sourced per RFQ through independent distribution.
This shrouded header mates with standard AMP-Latch ribbon-cable receptacles and IDC sockets that match the 0.100" pitch and 20-position layout.
Yes, it is ROHS3 Compliant per the manufacturer listing.
