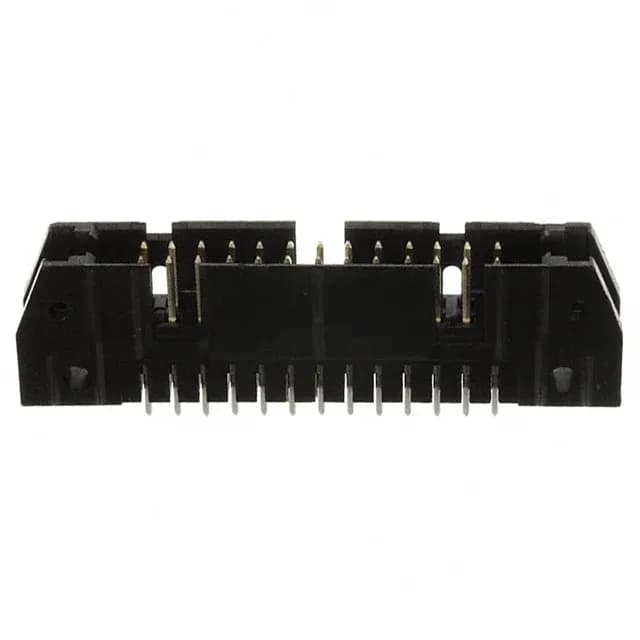

TE Connectivity AMP-Latch header, 5102154-6, 26-position, 2-row, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder, male pin, gold mating finish, black UL94 V-0 housing, bulk pack.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
A keying slot and mounting flange are included, ensuring correct orientation and mechanical retention when bolted to the board or panel. The push-pull fastening type allows tool-less mating and unmating. The through-hole termination with 0.110" (2.79mm) post length fits standard PCB thicknesses; the tin-plated posts are solder-compatible with lead-free processes.
Yes, the 5102154-6 is RoHS compliant.
Yes, it includes both a keying slot and a mounting flange for alignment and mechanical retention.
The 5102154-6 mates with AMP-Latch IDC socket connectors of the same 26-position, 2-row, 0.100" pitch configuration. Confirm the mating half part number against your harness assembly.
