TE Connectivity AMP Connectors 5102159-3 — Pin Headers

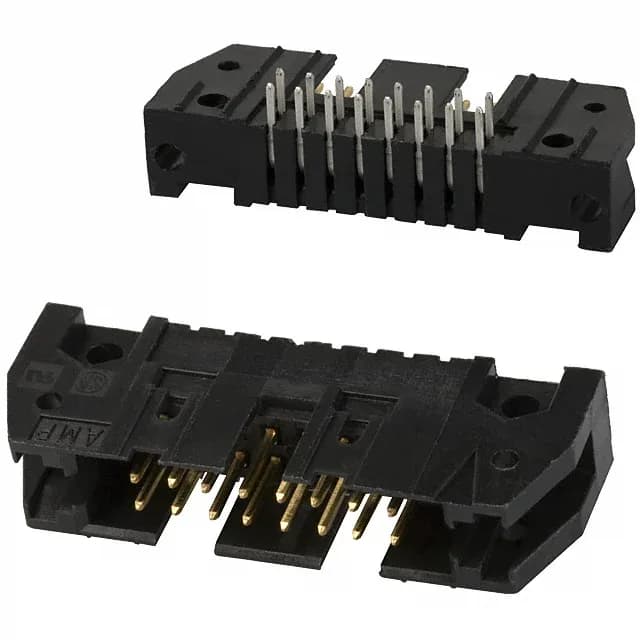

5102159-3 TE AMP-Latch Header 16 Pos Right Angle 2.54mm

MPN5102159-3
Active

TE Connectivity AMP-Latch header, 16-circuit, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, gold-plated male pins, rated 1 A per contact at 250 VAC.

$2.5100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5102159-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5102159-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.315\" (8.00mm)
Material flammability ratingUL94 V-0

All specifications

5102159-3 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

16-position right-angle header for board-to-cable wiring

This header mates with AMP-Latch IDC socket connectors and compatible 0.100" pitch ribbon-cable receptacles. The 0.240" (6.10 mm) mating pin length ensures full engagement with the receptacle contact.

How it compares to similar headers

Compared to the 1-1871673-2 (4-position, 0.098" pitch, tin mating finish), the 5102159-3 offers 16 circuits at the wider 0.100" pitch with gold mating contacts — a better fit for signal-level ribbon-cable assemblies that need higher circuit density and better corrosion resistance.

Frequently asked questions

What is the mating connector for 5102159-3?

This header mates with AMP-Latch IDC socket connectors and any 0.100" pitch ribbon-cable receptacle that accepts a 2-row, 16-position shrouded header with push-pull latching.

Are there alternatives to 5102159-3?

The 1-1871673-2 is a 4-position, 0.098" pitch header with tin contacts — different circuit count and plating. The 1379030-3 is a 12-position, 0.100" pitch header with a friction lock and tin contacts. Neither is a pin-compatible drop-in for the 16-position gold-contact 5102159-3.
