1 A per contact, gold mating finish — signal-level duty
The 5102159-4: The 1 A rating is the per-contact ceiling at room ambient; in a dense harness with all 20 circuits loaded, the bundle derating is the practical limit.

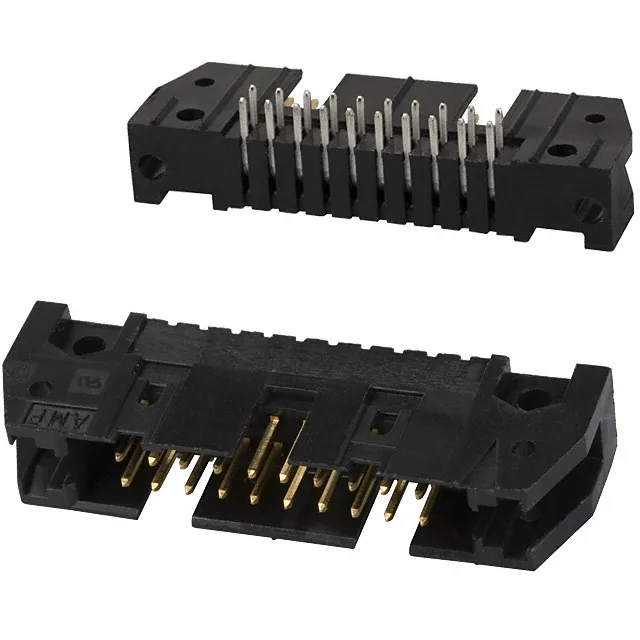

5102159-4 TE Connectivity AMP-Latch Header, 20 Pos, 2.54mm
MPN5102159-4
Active
TE Connectivity AMP-Latch shrouded header, 20 positions, 2 rows, 0.100" (2.54mm) pitch, right-angle through-hole, male pin, gold mating finish, 1 A per contact, 250 VAC, UL94 V-0, RoHS.
$2.9900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.315\" (8.00mm) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Where can I buy the 5102159-4 connector?
Submit an RFQ for current availability and pricing — no stock-holding claim, confirmed at quote time.
Is the 5102159-4 RoHS compliant?
Yes, it is RoHS compliant per the manufacturer's listing.
What is the pitch and position count of the 5102159-4?
All positions are loaded.
