Ribbon-ready header for 10-conductor cable

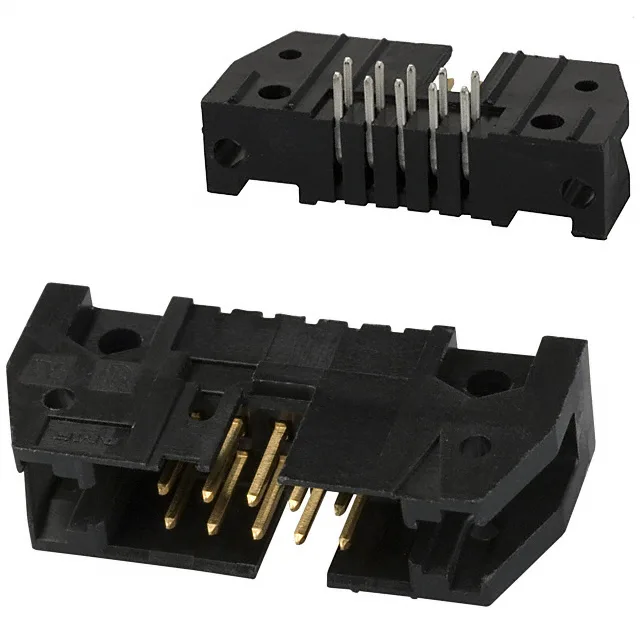

The 5102160-1 is a 10-position, 2-row header from the AMP-Latch series, built for board-to-cable/wire connections. Watch pin-one every press: the keying slot and mounting flange orient the header in the fixture. The 0.110" (2.79mm) post length sets the solder tail depth for a standard 1.6mm board. Rated 1A per contact at 250VAC — this is a signal-level header, not a power interconnect.
The 5102160-1 mates with AMP-Latch IDC receptacles (e.g., 499451 series) that accept 10-conductor ribbon cable. Push-pull fastening — no latch, so the cable assembly relies on the strain relief for retention.
