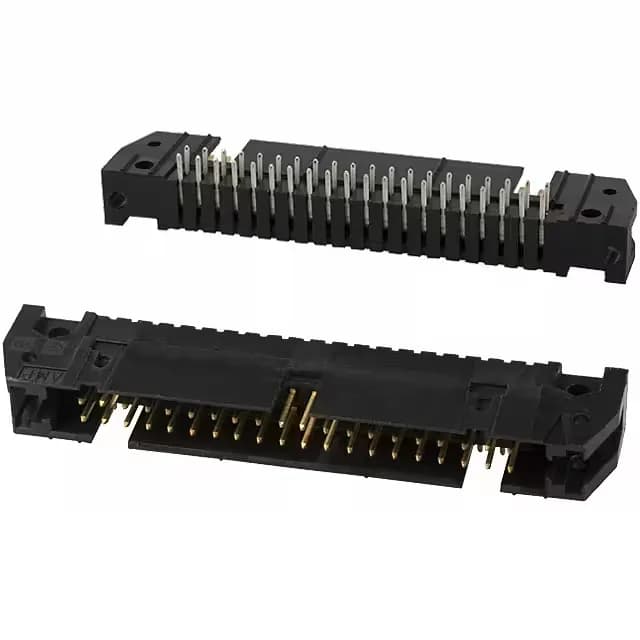

40-Position Shrouded Header for Dense Cable-to-Board Harnesses
The keying slot and mounting flange add polarization and mechanical retention to the board interface.
The tin-plated posts (100 µinch) provide a reliable solder joint compatible with lead-free reflow.
RoHS compliant per current directive.
Mating Half and Build-to-Print BOM
Mates with AMP-Latch IDC socket receptacles in the same 40-position, 0.100" pitch layout. The mating half uses a push-pull fastening system — no locking latch, so the assembly relies on the mounting flange for board retention. For a complete build-to-print BOM, order the header (5102160-9), the matching receptacle (e.g., 1-111382-0 or similar 40-position AMP-Latch socket), and the appropriate IDC ribbon cable. The crimp terminals are integral to the receptacle — no separate contacts needed for the header side.
