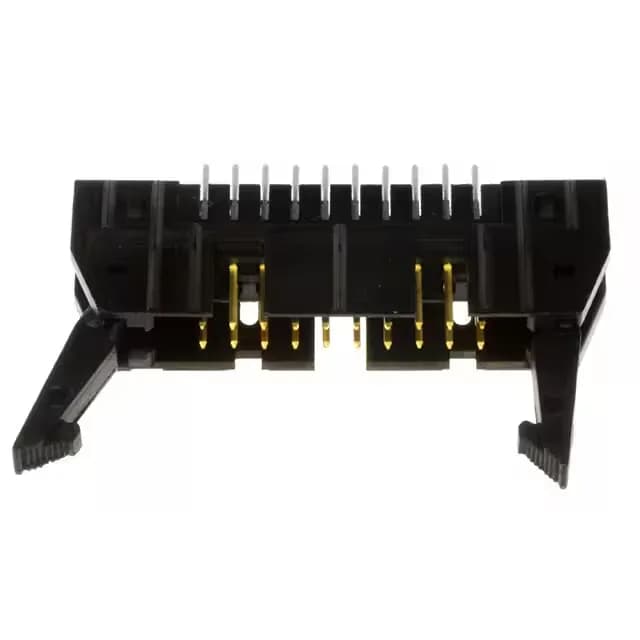

TE Connectivity AMP-Latch series, 5102321-4, board-to-cable/wire header, 20 positions, 2.54mm pitch, shrouded 4-wall, through-hole solder, male pin, latch lock/eject hooks, gold-plated mating contacts, 1 A per contact, 250 VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.155\" (3.94mm) |
| Overall contact length | 0.684\" (17.37mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5102321-4: The latch lock/eject hooks on the long sides provide a positive mechanical lock; when the mating housing clicks in, the hooks resist vibration-induced separation and also act as ejectors for un-mating. The keying slot and mounting flange on the header body prevent mis-mating and give a secondary anchor point to the panel or PCB for strain relief.
The post tails are tin-plated (100.0 µinch) for good solderability to the PCB.
The mating pitch is 0.100" (2.54 mm), and the row spacing is also 0.100" (2.54 mm). This is the standard pitch for AMP-Latch ribbon-cable IDC connectors.
Yes, it is a shrouded header with a 4-wall shroud. The fastening type is latch lock/eject hooks on the long sides — these provide a positive lock and also act as ejectors for un-mating.
