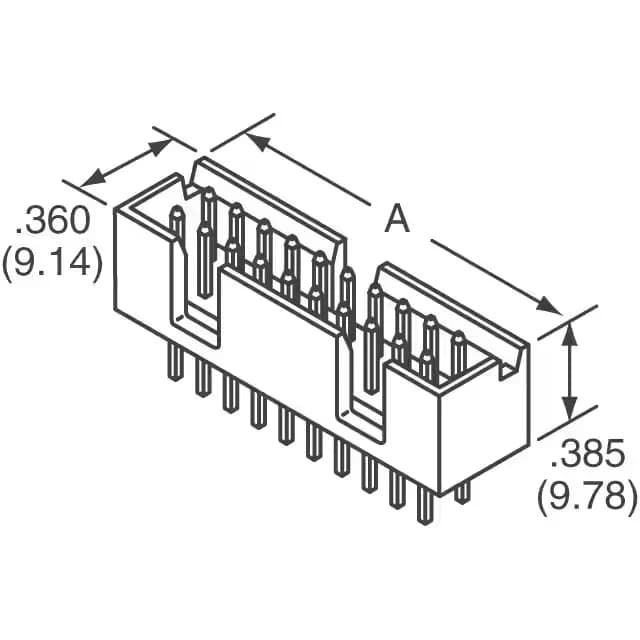

TE Connectivity AMP-Latch 5103308-7, shrouded 4-wall header, 34 positions, 2.54 mm pitch, through-hole, male pin, 1 A per contact, 15 µinch gold mating finish, UL94 V-0, tray.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.388\" (9.86mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5103308-7: The tin-plated post (100 µinch) suits solder termination to the PCB.
The part is RoHS3 compliant.
This header mates with AMP-Latch IDC socket connectors (e.g., 746285-7 or similar 34-position ribbon cable receptacles). The 0.100" pitch and keying slot ensure correct orientation.
All positions are loaded.
Yes, it is a shrouded 4-wall header with through-hole solder termination. The push-pull fastening means it relies on the mating connector's latch for retention.
