TE Connectivity AMP-Latch series, 20-position dual-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, male pin contacts with 30 µinch gold mating finish, 1 A per contact, UL94 V-0 black housing.

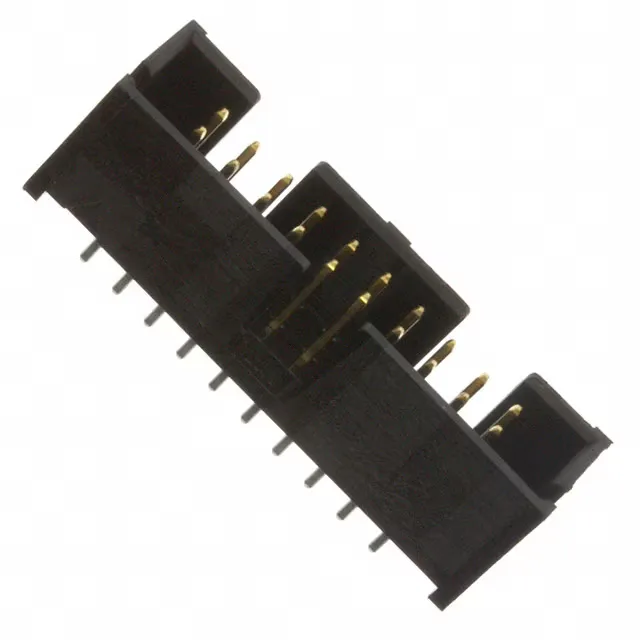

5103309-5 TE Connectivity AMP-Latch Header, 20 Pos, 2.54 mm
MPN5103309-5
Active
TE Connectivity AMP-Latch series, 20-position dual-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, male pin contacts with 30 µinch gold mating finish, 1 A per contact, UL94 V-0 black housing.
$3.1900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.388\" (9.86mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 5103309-5?
The push-pull latch and 4-wall shroud are designed for the standard AMP-Latch interface.
