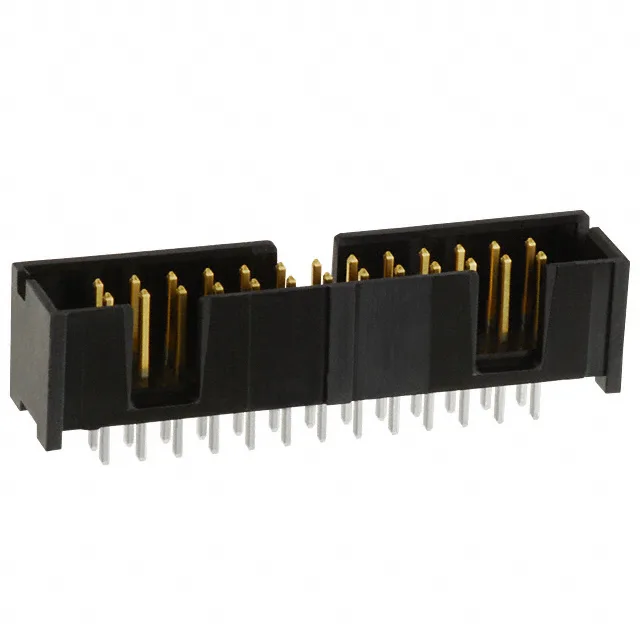

TE Connectivity AMP-Latch shrouded header, 26 positions, 2.54mm pitch, through-hole, male pin, gold or gold-palladium mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.388\" (9.86mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5103309-6: This is a 26-position, 0.100" (2.54mm) pitch shrouded header from the AMP-Latch series, designed to mate with standard 26-pin IDC sockets used in ribbon-cable assemblies. The post tails are tin-plated for solderability.
Yes. The 2.54mm pitch, 26 positions, and 0.240" mating pin length are standard AMP-Latch dimensions, so it mates with any 26-position AMP-Latch IDC receptacle.
