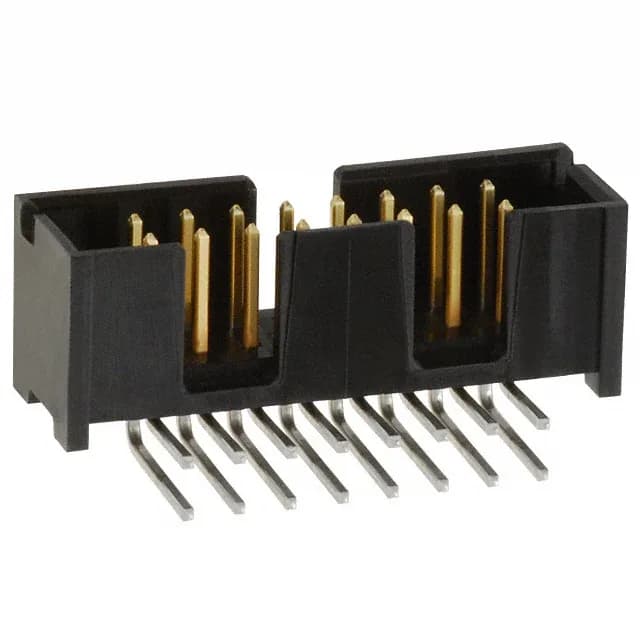

TE Connectivity AMP-Latch header, 16 circuits, 0.100" (2.54 mm) pitch, dual-row, right-angle through-hole, shrouded 4-wall, male pin, gold or gold-palladium mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
In a field-service application where the connector is cycled quarterly, that is decades of service life at the contact interface. The contact base metal is brass, a common choice for cost-effective signal contacts.
The 5103310-3 gives you 16 circuits vs 12, a push-pull latch, and a V-0 flame rating — a meaningful difference if you need more positions or stricter flammability compliance.
Yes, it is ROHS3 compliant.
This is a male pin header; it mates with a female socket (receptacle) from the AMP-Latch series, typically an IDC ribbon cable connector. Confirm the circuit count and pitch match your cable assembly.
