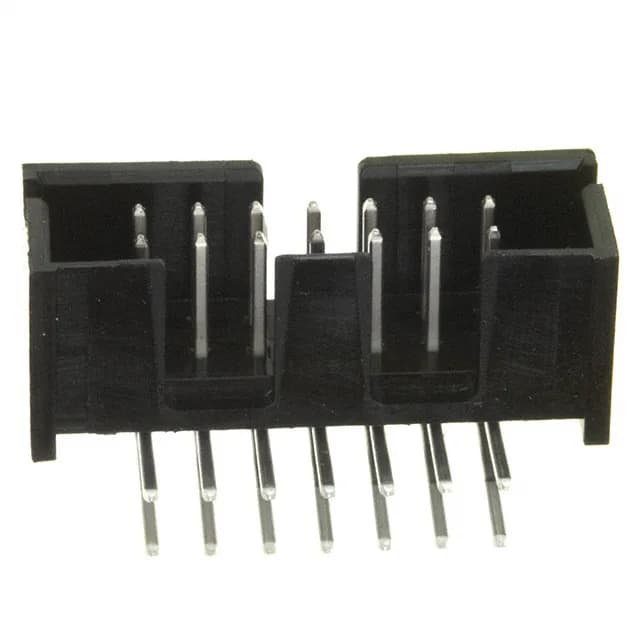

TE Connectivity AMP-Latch 5103311-2, Board to Cable/Wire header, 14 circuits, 2 rows, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded – 4 wall, gold or gold-palladium mating finish, 1 A per contact.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5103311-2 is a 14-position, dual-row, through-hole right-angle header from the AMP-Latch series. It mates with standard AMP-Latch IDC receptacles for board-to-cable/wire applications. The 0.100" (2.54mm) pitch and 0.100" row spacing match the footprint of common ribbon-cable connectors, keeping the board layout straightforward for a 14-circuit signal interface.
The mating pitch is 0.100" (2.54mm) with 0.100" row spacing, matching standard AMP-Latch IDC receptacles.
Yes, it is ROHS3 compliant.
Rated 1 A per contact.
It mates with AMP-Latch IDC receptacles of the same 14-position, 0.100" pitch configuration. The specific receptacle order code depends on your termination style (crimp or IDC) and cable gauge.
