TE Connectivity AMP Connectors 5103311-3 — Pin Headers

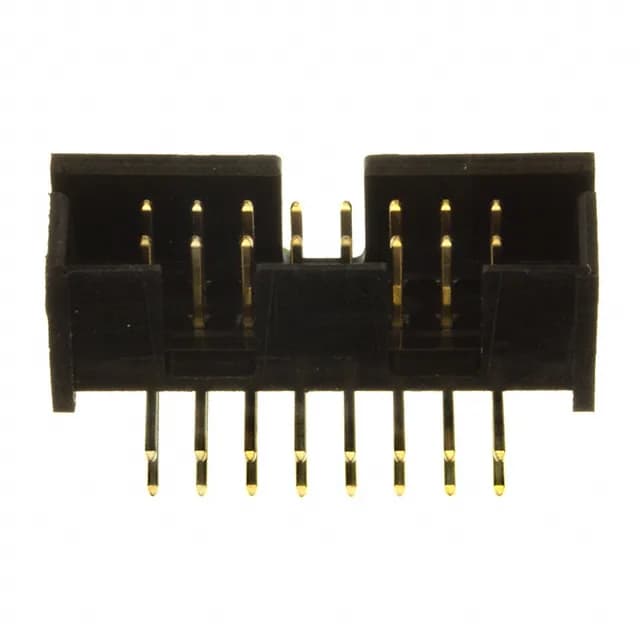

5103311-3 TE Connectivity AMP-Latch Header 16 Pos 2.54mm RA

MPN5103311-3
Active

TE Connectivity AMP-Latch series, 16-position right-angle header, 0.100" (2.54 mm) pitch, shrouded 4-wall, through-hole solder termination, gold-plated mating contacts, 1 A per contact, UL94 V-0 black housing.

$3.5300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5103311-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5103311-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.360\" (9.14mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5103311-3 additional specifications
ParameterValue
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-wire header for parallel cable exit

The 5103311-3 is a 16-position, 2-row, right-angle header from the AMP-Latch series. Rated 1 A per contact, with the current ceiling set by the housing temperature rise at the 105°C upper operating limit. The 30 µinch gold-over-nickel mating finish handles repeated connect/disconnect cycles without fretting corrosion.

Sourcing and lifecycle for BOM planning

RoHS compliant.

Mates with AMP-Latch receptacles that accept 0.100" pitch IDC ribbon cable. The shrouded 4-wall housing and keying slot prevent mis-mating — the plug only inserts one way. Through-hole solder termination: the 0.135" (3.43 mm) post length suits standard 0.062" PCB thickness. Tin-plated posts (100 µinch) solder reliably with SnPb or SAC alloys.
