TE Connectivity AMP Connectors 5103311-5 — Pin Headers

5103311-5 TE Connectivity AMP-Latch Header, 20 Pos, 2.54mm

MPN5103311-5
Active

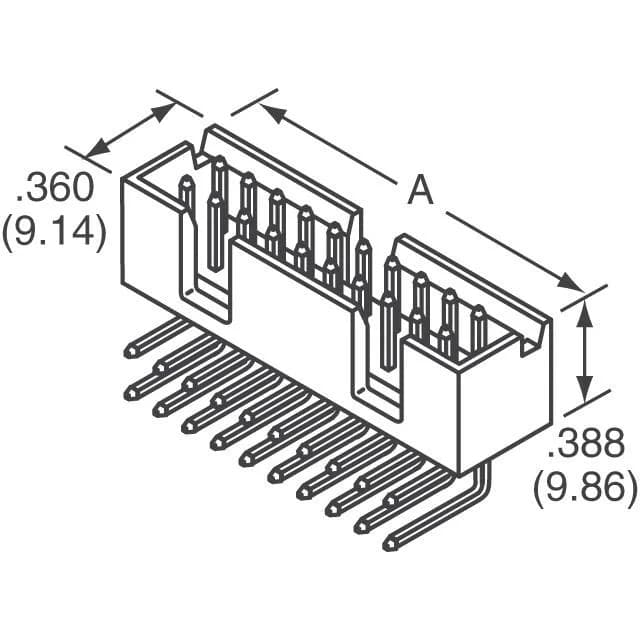

TE Connectivity AMP-Latch shrouded header, 5103311-5, 20 positions, 2.54mm pitch, right-angle through-hole, gold-plated male pins, push-pull latch, UL94 V-0.

$4.4100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5103311-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5103311-5 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.360\" (9.14mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5103311-5 additional specifications
ParameterValue
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Gold-Plated Mating Surface and 30 µinch Thickness

The 5103311-5: Brass contact material with this plating grade keeps contact resistance stable through the rated 1A per circuit.

Right-Angle Through-Hole Mounting for Board-Edge Routing

The 0.240" (6.10mm) mating pin length and 0.135" (3.43mm) post length match standard AMP-Latch receptacle depths. Push-pull fastening with a shrouded 4-wall housing provides a secure mate without tools, while the keying slot prevents incorrect insertion of the mating half.

Frequently asked questions

Where can I buy 5103311-5 and how do I get a price?

The 5103311-5 is available through independent distribution. Submit an RFQ for current pricing and lead time; availability is confirmed at quote time.

What is the mating connector for 5103311-5?

This shrouded header mates with AMP-Latch IDC ribbon cable receptacles (e.g., 746285-8 or similar 20-position, 2.54mm pitch socket assemblies). Confirm the receptacle's keying and latch compatibility with your cable assembly.

Is 5103311-5 RoHS compliant?

Yes, the 5103311-5 is ROHS3 compliant per the manufacturer's listing.
