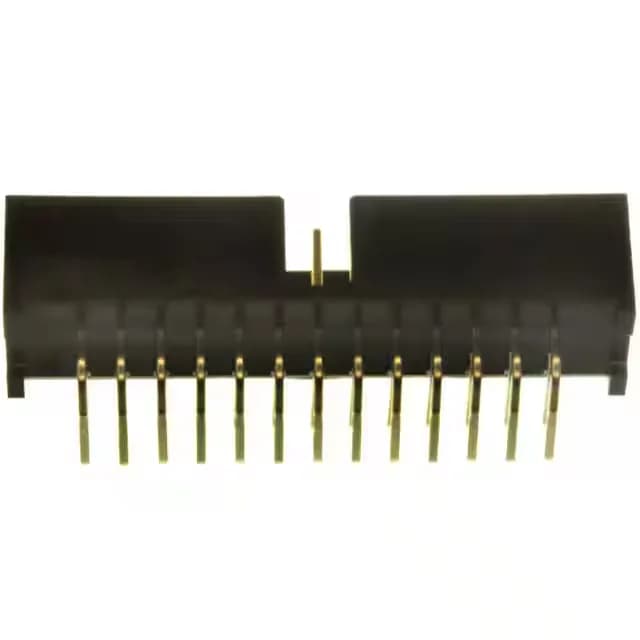

TE Connectivity AMP-Latch header, 5103311-6, 26-position, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, male pin, 30 µinch gold mating contact, 1 A per contact, UL94 V-0, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5103311-6 is a 26-position, 0.100-inch pitch header from the TE AMP-Latch series, designed to mate with a 26-conductor IDC ribbon cable receptacle. This orientation saves z-height in enclosures where clearance above the board is tight.
It is ROHS3 compliant.
Yes, it is ROHS3 compliant.
The mating pitch is 0.100 inch (2.54 mm), and the row spacing is also 0.100 inch.
