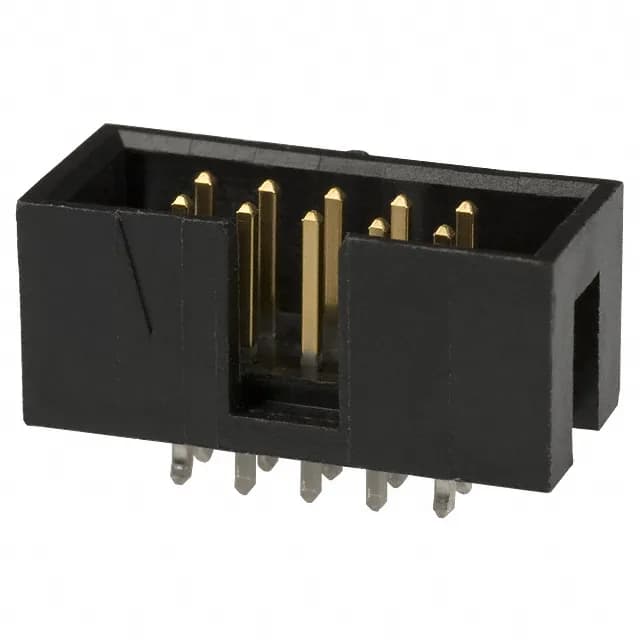

10-position, 0.100" pitch — the footprint that defines the BOM
Mates with AMP-Latch IDC receptacles — push-pull, no secondary lock
This header mates with standard AMP-Latch IDC socket connectors (e.g., 1-111196-8 or similar 10-position dual-row receptacles). The 0.100" row spacing matches the mating receptacle's dual-row layout; the 0.240" (6.10 mm) mating pin length ensures full contact wipe before the latch seats.
Peer comparison: 1379030-3 vs 5104338-1
The 5104338-1's gold mating finish gives it a higher mating cycle life, while the 1379030-3's tin contacts are cost-optimised for one-time or infrequent disconnect. Both are active; the choice depends on whether the application needs repeated reconnection or a lower per-unit cost.
