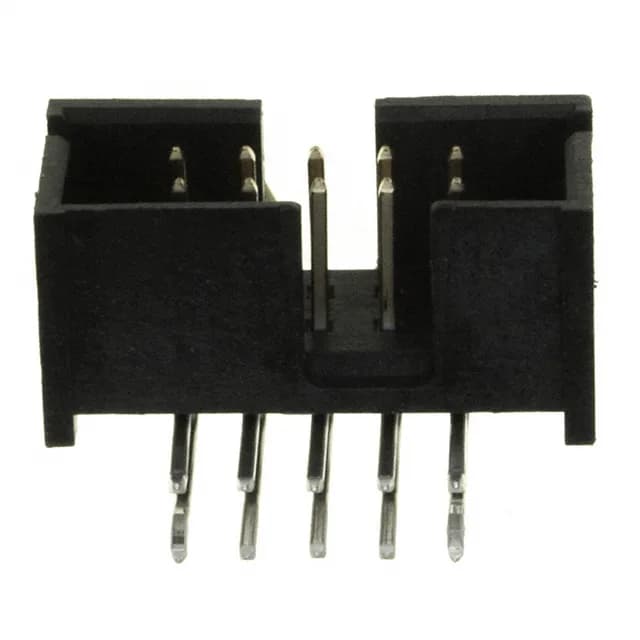

Ribbon-fit check: 10 positions, dual-row, right-angle
The four-wall shrouding and keying slot guide the IDC socket into alignment and prevent mis-mating — watch pin-one orientation on the ribbon press.
The header is RoHS3 compliant and rated for operation from -65°C to 105°C, with a UL94 V-0 glass-filled PPA housing.
Mating and termination: AMP-Latch IDC socket, kinked-pin solder
This header mates with the standard AMP-Latch IDC socket (e.g., 1-111196-6 or similar 10-position, 0.100" pitch receptacle). The kinked pin solder tails provide retention during wave solder before the joint solidifies.
