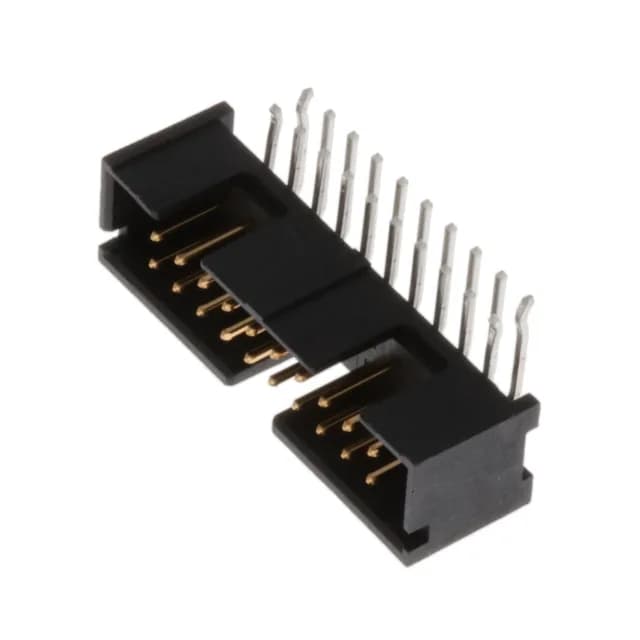

TE Connectivity AMP-Latch 5104340-4, board-to-cable/wire header, 20 positions, 0.100" (2.54mm) pitch, dual-row, right-angle through-hole, shrouded 4-wall, kinked pin solder termination, gold or gold-palladium mating finish, 1 A per contact, -65°C to 105°C, UL94 V-0, RoHS.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Polyphthalamide (PPA), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
This is the 5104340-4, a 20-position, dual-row header in the AMP-Latch series from TE Connectivity. It mates with standard AMP-Latch IDC ribbon cable sockets, making it the board-side half of a parallel-wire harness connection.
Each contact is rated 1 A, a typical signal-level current for ribbon cable interconnects.
Yes, the 5104340-4 is RoHS compliant.
