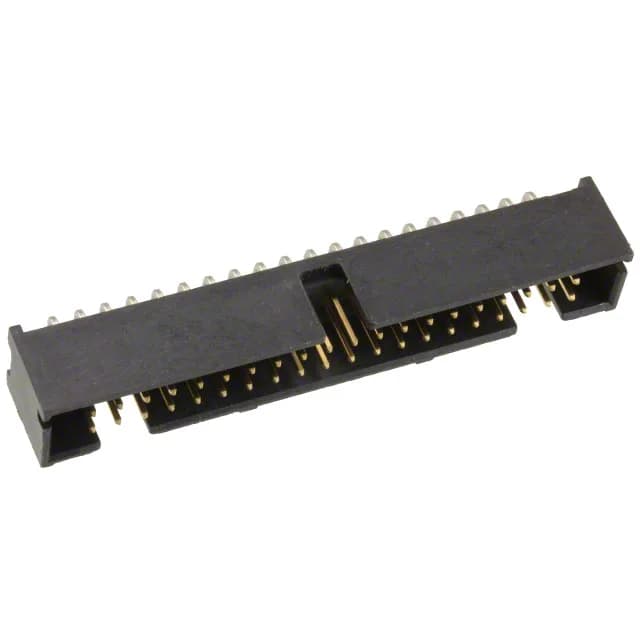

TE Connectivity AMP-Latch shrouded header, 5104340-8, 40 positions, 0.100" (2.54 mm) pitch, right-angle through-hole, male pin, gold or gold-palladium mating finish, 1 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Polyphthalamide (PPA), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Termination is kinked-pin solder — the kink provides a press-fit retention in the plated through-hole before wave soldering, holding the header in place during assembly.
For a 40-position IDC cable assembly, the 5104340-8 is the correct mate — the 12-position part is a different density and won't fit the same cable.
Yes, it is ROHS3 compliant.
This header mates with a standard AMP-Latch IDC receptacle (such as 1-746285-8 or similar 40-position, 0.100" pitch receptacle). Confirm the exact receptacle part number against your cable assembly requirements.
