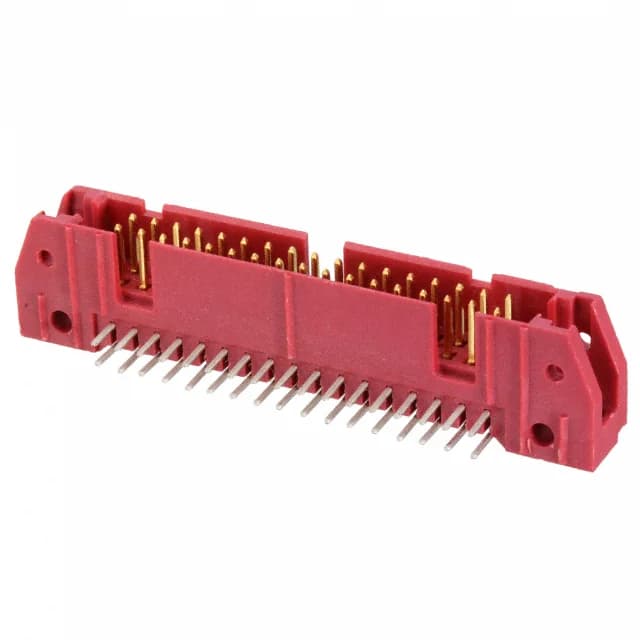

5111105-8 TE AMP-Latch Header, 34 Pos, 0.100" Pitch

MPN5111105-8
Active

TE Connectivity AMP-Latch, Header, 34 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder, Male Pin, Shrouded - 4 Wall, Red Insulation, 1A per Contact, -65°C ~ 105°C, UL94 V-0

$7.1200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5111105-8 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5111105-8 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.315\" (8.00mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT)
Material flammability ratingUL94 V-0

All specifications

5111105-8 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions34
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

34-position right-angle header for ribbon-cable harnesses

The 5111105-8 is a 34-position, 2-row header from the TE AMP-Latch series, designed for board-to-cable/wire interconnects using standard 0.100-inch pitch ribbon cable.

Pitch and footprint for BOM fit

The mating pitch is 0.100" (2.54mm) with an identical 0.100" row spacing, matching the standard IDC ribbon cable grid. The contact length on the mating side is 0.240" (6.10mm), and the post length is 0.110" (2.79mm) — check your board thickness and through-hole plating depth against these dimensions.

Frequently asked questions

What is the pitch of 5111105-8?

The mating pitch is 0.100" (2.54mm) with a row spacing of 0.100" (2.54mm), matching standard 0.100-inch ribbon cable and IDC connectors.

Is 5111105-8 shrouded?

Yes, it is a shrouded header with 4-wall protection around the male pins, reducing the risk of pin damage during handling and mating.

What is the mating connector for 5111105-8?

The 5111105-8 mates with TE AMP-Latch IDC receptacles and other 0.100-inch pitch, 34-position, 2-row female connectors designed for the AMP-Latch series. The keying slot and mounting flange on this header help align and secure the mating half.
