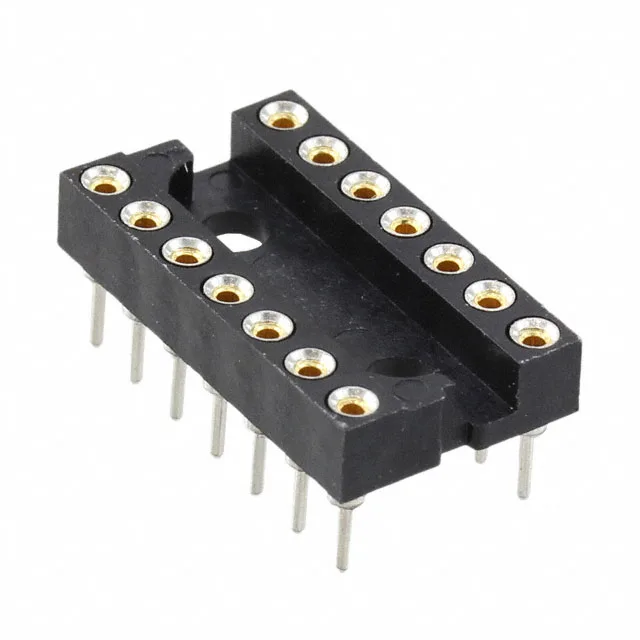

TE Connectivity AMP Series 500 DIP socket, order code 514-AG11D-ES, 14 positions (2 x 7), 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination, closed-frame polyester housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polyester |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 14 (2 x 7) |
The 514-AG11D-ES is the 14-position (2 x 7) member of TE Connectivity's AMP Series 500 DIP socket line, housed in a closed-frame polyester body rated UL94 V-0. Gold-plated mating and post contacts carry 3 A per pin across a -55°C to 125°C operating range, with 10 mOhm contact resistance.
The 514-AG11D-ES is listed as Obsolete by TE Connectivity AMP Connectors.
Sourced through independent surplus channels.
The housing material is rated UL94 V-0. RoHS and REACH compliance status is not confirmed in available records.
