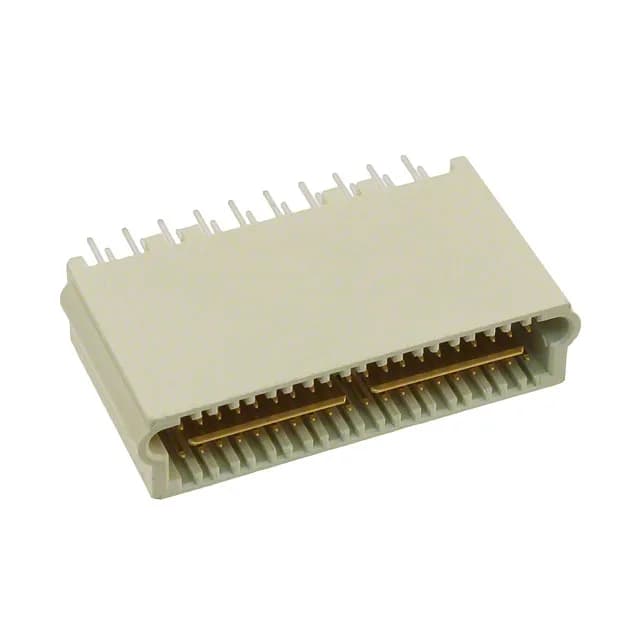

TE Connectivity AMP Connectors 5149009-1
MPN5149009-1
Obsolete
$8.5200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Strip |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Plug |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.648\" (16.46mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 18.75mm |
| Style | Board to Board |
| Package | Tube |
| Features | Ground Bus (Plane) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
