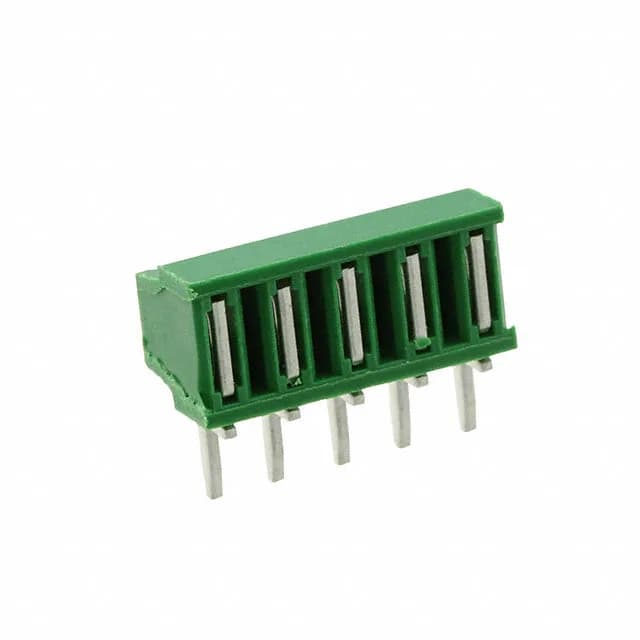

TE Connectivity AMP Connectors Mini-Match receptacle, order code 5164711-5, 5 positions, single row, 2.50 mm pitch, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Mini-Match |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
The 5164711-5 is the 5-position member of TE's Mini-Match board-to-board receptacle line, single row, 2.50 mm pitch. Tin-plated mating contacts, through-hole right-angle mounting, and a friction lock hold the mated pair together.
