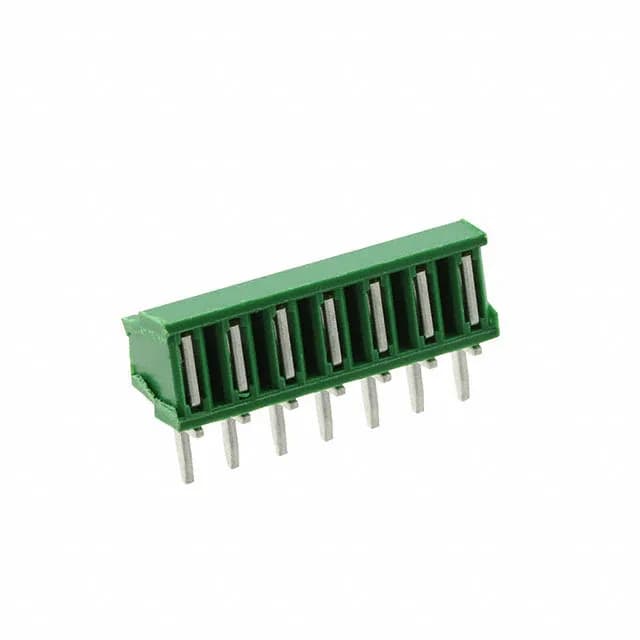

TE Connectivity AMP Mini-Match series, 5164711-7, 7-position single-row receptacle, 2.50mm pitch, tin-plated forked contacts, through-hole right-angle mounting, friction lock, UL94 V-0 green PBT housing.
| Parameter | Value |
|---|---|
| Series | Mini-Match |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
The 5164711-7 is a 7-position single-row receptacle from the TE Mini-Match series, designed for board-to-board interconnects. The 2.50 mm pitch sets the PCB footprint and the per-contact current ceiling — tin-plated forked contacts handle signal-level current without the cost of gold.
The 5164711-7 is a receptacle from the Mini-Match series. Confirm the header part number against your BOM before ordering.
Yes, the 5164711-7 is RoHS compliant per the manufacturer's listing.
