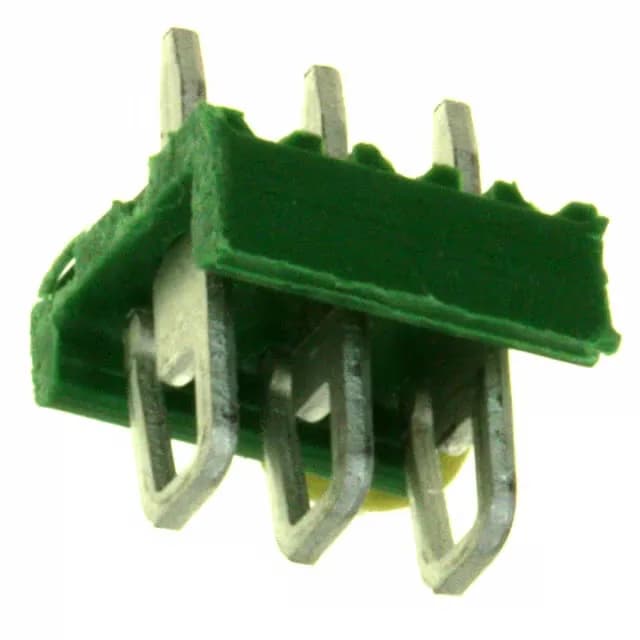

TE Connectivity AMP Connectors Mini-Match header, order code 5164713-3, 3 positions, single row, 2.50 mm pitch, unshrouded, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Mini-Match |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.358\" (9.09mm) |
| Contact finish - mating | Tin |
The 5164713-3 is the 3-circuit member of TE's Mini-Match header line, a board-to-cable/wire interconnect with a 2.50 mm pitch. It carries tin-plated mating contacts, mounts through-hole, and terminates by solder.
