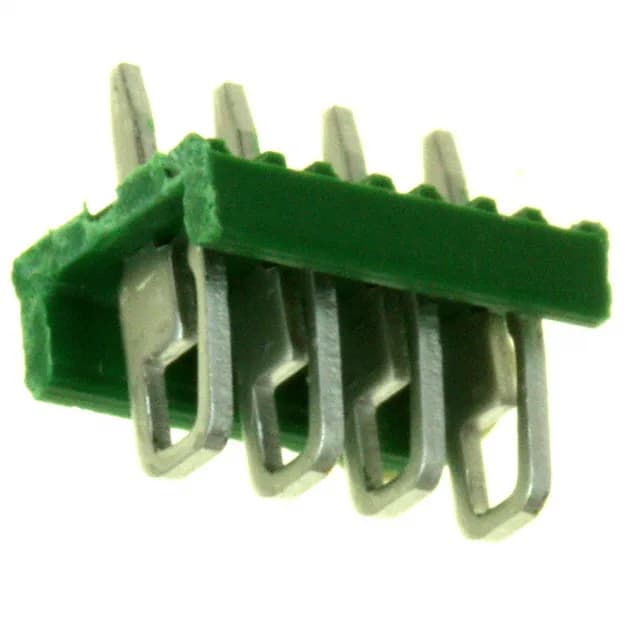

TE Connectivity AMP Connectors Mini-Match header, order code 5164713-4, 4 positions, single row, 0.098" (2.50mm) pitch, tin-plated mating contacts, through-hole, solder termination.
TE 5164713-4 Mini-Match Header, 4 Pos, 2.50mm, Tin
MPN5164713-4
Active
TE Connectivity AMP Connectors Mini-Match header, order code 5164713-4, 4 positions, single row, 0.098" (2.50mm) pitch, tin-plated mating contacts, through-hole, solder termination.
$0.4279Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Match |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.358\" (9.09mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
Where can I buy 5164713-4 and how do I get a price?
The 5164713-4 is available through distribution.
