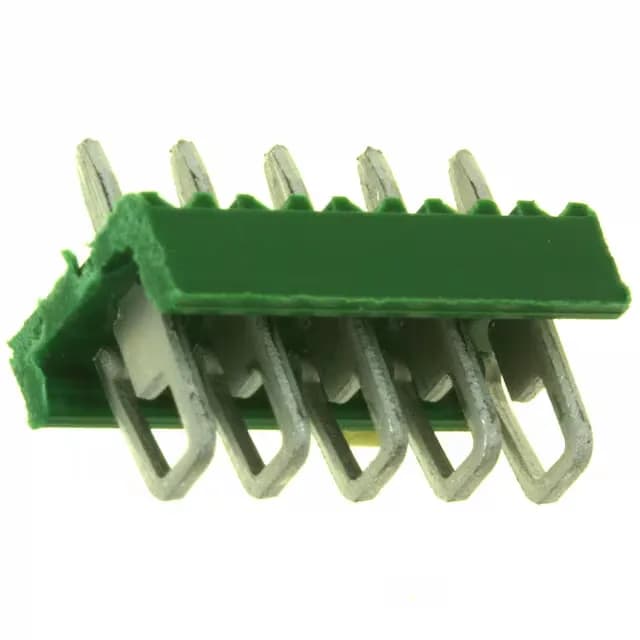

TE Connectivity AMP Mini-Match series, unshrouded header, 5 circuits, single row, 0.098" (2.50 mm) pitch, through-hole solder termination, tin-plated rectangular tab contacts, green PBT housing.
| Parameter | Value |
|---|---|
| Series | Mini-Match |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.358\" (9.09mm) |
| Contact finish - mating | Tin |
The 5164713-5: Tin-on-tin mating finish is standard for cost-sensitive, moderate-cycle applications.
That part adds a board guide and glow-wire compliance (UL94 V-0), but its 50 VAC rating and 2 A current limit are lower than the typical Mini-Match capability. For a 5-circuit unshrouded layout, 5164713-5 is the direct fit; the shrouded sibling is a different mechanical envelope and won't mate with the same receptacle.
The mating pitch is 0.098" (2.50 mm), which is the center-to-center spacing of the pins. This sets the PCB hole pattern and the routing density for the board.
Yes, it is ROHS3 compliant per the manufacturer's listing.
