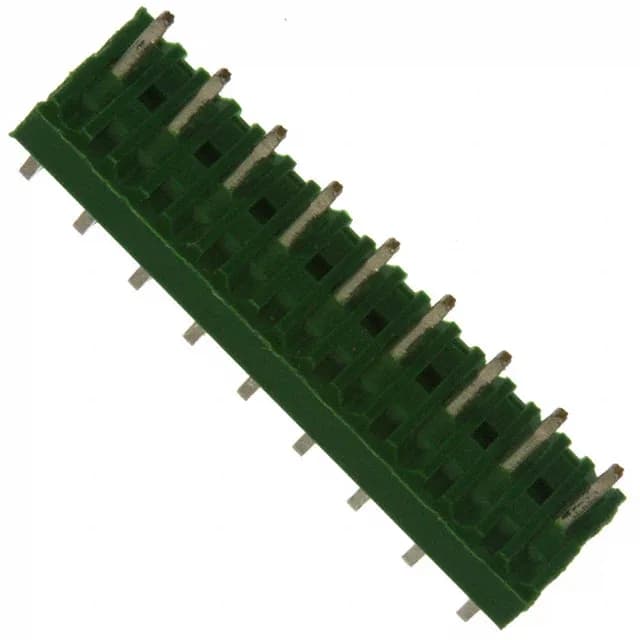

TE Connectivity AMP Connectors Mini-Match series, 5164713-9, Board to Cable/Wire header, 9 positions, 2.50mm pitch, single row, through-hole, tin-plated contacts, unshrouded, green PBT housing.
| Parameter | Value |
|---|---|
| Series | Mini-Match |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.358\" (9.09mm) |
| Contact finish - mating | Tin |
The 5164713-9 is a TE Connectivity AMP Connectors Mini-Match series header, configured as a board-to-cable/wire interconnect.
Termination is solder through-hole. The contact posts measure 0.126" (3.20 mm) long, with an overall contact length of 0.358" (9.09 mm).
5164713-9 is sourced through independent distribution. Submit an RFQ for current availability and pricing against your BOM quantity.
The mating pitch is 0.098" (2.50 mm). This sets the PCB footprint and the per-contact current ceiling for the wire-to-board interface.
