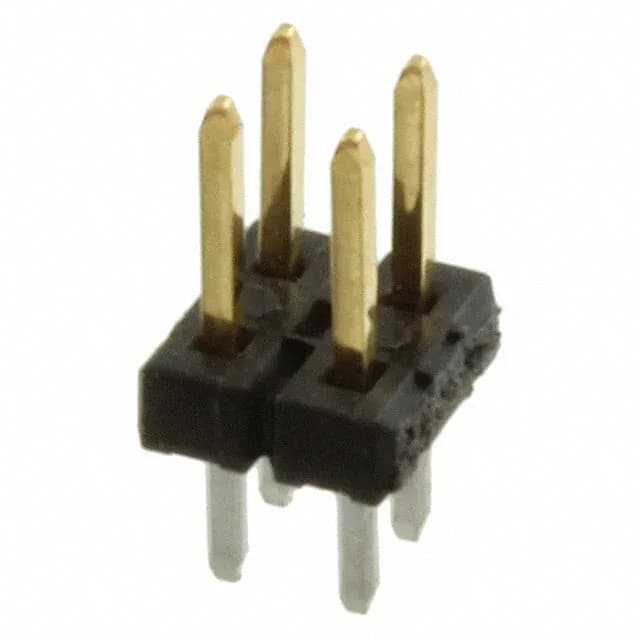

TE Connectivity AMP Connectors AMPMODU series, 5176264-1, Header Breakaway, 4 circuits, 2.00mm pitch, dual-row, through-hole, male pin, gold mating finish, 30.0µin, UL94 V-0, -40°C to 105°C, tray.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 200VAC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5176264-1 is a 4-position, dual-row breakaway header from the TE AMPMODU series.
This header is rated for board-to-board or cable interconnection. The 0.157" mating pin length engages with standard AMPMODU receptacles; the 0.059" insulator height leaves clearance for the mating housing.
ROHS3 compliant per the ledger. The tray packaging is standard for this header — no reel or tape option noted.
The 5176264-1 is sourced through independent distribution channels. No stock-holding claim is made — availability is verified per inquiry.
The mating pitch is 0.079" (2.00mm) and the row spacing is also 0.079" (2.00mm). This dual-row, 4-position layout matches standard AMPMODU receptacles with the same pitch.
