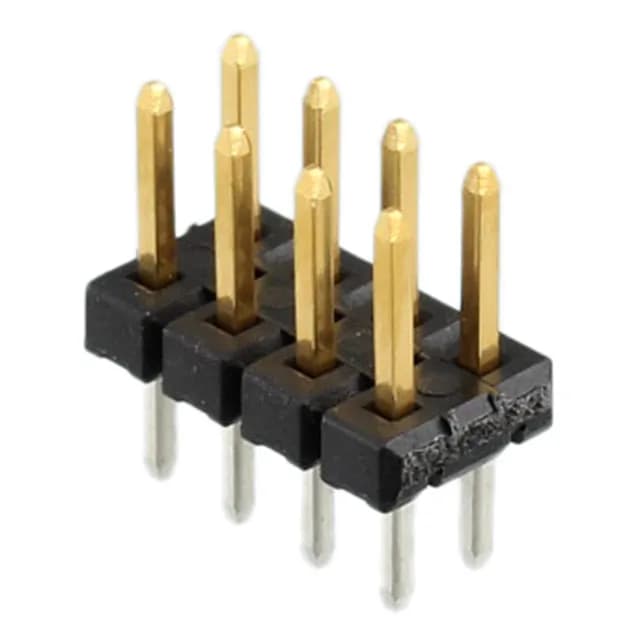

The 5176264-3: At this spacing, the header mates with standard AMPMODU receptacles — the dual-row layout gives you 8 circuits in a compact width that keeps trace routing between pins manageable on a two-layer board. The unshrouded breakaway design lets you snap to length if you need fewer than 8 positions, though this part ships with all positions loaded.
The insulation height is only 0.059 inch (1.50 mm) above the board surface — useful when you're working in a tight z-height budget between parallel boards.
Temperature Range and Material Ratings
Contact material is brass with tin-plated posts and gold-plated mating surfaces. The tin on the solder tail wets well in lead-free wave solder profiles.
