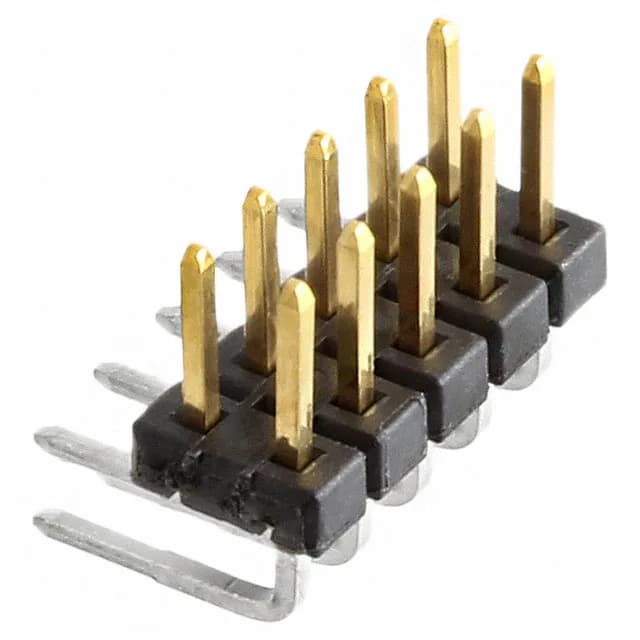

TE Connectivity AMPMODU, Header, Breakaway, 10 Positions, 2.00mm Pitch, Through Hole, Right Angle, Gold Mating Finish, 1A, 200VAC, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 200VAC |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.165\" (4.20mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The post finish is tin, standard for solder-joint reliability. The thermoplastic housing is rated UL94 V-0.
Mating contact length is 0.157 inches (4.00 mm), post length is 0.102 inches (2.60 mm). The insulation height above board is 0.165 inches (4.20 mm). These dimensions define the stack-up clearance for the mating connector.
The mating pitch is 0.079 inches (2.00 mm), with the same row spacing.
Yes, it is an unshrouded header. The mating receptacle must provide its own polarization or keying.
