TE Connectivity AMP Connectors 5176837-5 — Pin Headers

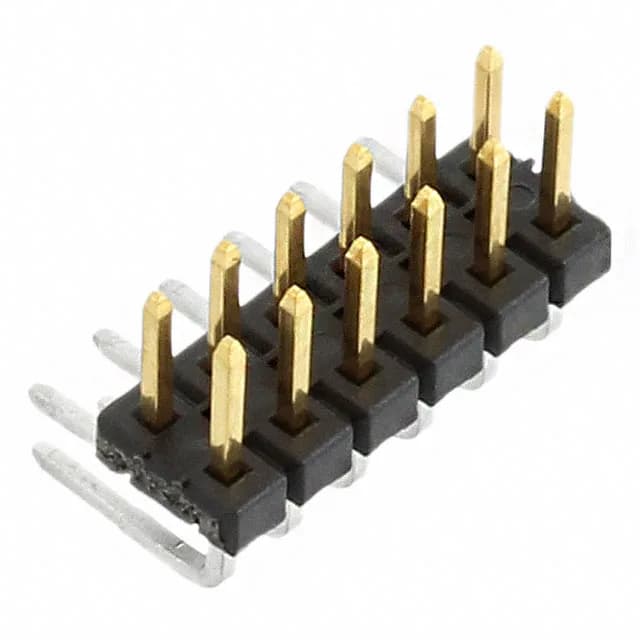

5176837-5 TE AMPMODU Header, 12 Pos, 2mm Pitch, Right Angle

MPN5176837-5
Active

TE Connectivity AMPMODU header, breakaway, 12 positions, 2 rows, 0.079" (2.00mm) pitch, through-hole right-angle, male pin, gold mating, 1A, 200VAC, UL94 V-0, -40°C to 105°C.

$3.5600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5176837-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5176837-5 key specifications
ParameterValue
SeriesAMPMODU
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Voltage rating200VAC
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.165\" (4.20mm)
Insulation materialThermoplastic

All specifications

5176837-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions12
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-edge signal header for tight z-height budgets

The 5176837-5: This is a 12-position, dual-row unshrouded header from the AMPMODU series, pitched at 2.00mm — a common footprint for board-to-board or cable-to-board signal interconnects.

Pitch, plating, and temperature range

The 2.00mm pitch and 2.00mm row spacing define the PCB footprint — a compact grid that balances routing density with ease of hand-soldering or wave-solder assembly. The brass pins with tin-plated posts solder cleanly into plated through-holes.

Frequently asked questions

Where can I buy 5176837-5 and check current pricing?

This part is sourced through independent distribution. Submit an RFQ with your target quantity and we will confirm availability and current pricing — no stock-holding claim is made here; each order is quoted individually.

What is the mating connector for this header?

The mating half is a 2.00mm pitch receptacle housing from the AMPMODU series, typically with 12 positions and dual rows. Confirm the specific receptacle part number against your harness design.
