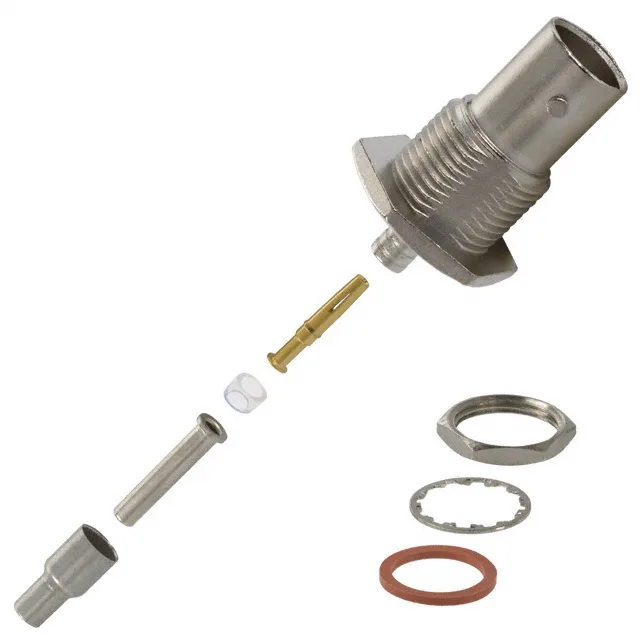

5221221-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5221221-5 BNC Jack, 75 Ohm, 2 GHz, Bulkhead

MPN5221221-5
Active

TE Connectivity, BNC Jack, 5221221-5, 75 Ohm, 1 Port, Bulkhead, Crimp Termination, 2 GHz, 500 Mating Cycles, 7-Piece Kit.

$9.3800Ref. price · indicative, final on quote
5221221-5 datasheet
StockIn Stock (35)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5221221-5 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-179, 179A, 179B, 187, 187A
Operating temperature-65°C ~ 85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolyethylene (PE)
Center contact materialBeryllium Copper
PackageBulk
Includes7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve
Impedance75 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

It is a 7-piece kit that includes the connector body, contact, ferrule, gasket, lockwasher, nut, and sleeve — everything needed for a single cable termination.

It accepts RG-179, 179A, 179B, 187, and 187A cable groups — the crimp shield termination and crimp contact termination match the standard field-termination workflow for these small-diameter coax cables.

Mounting and Hardware

The bulkhead front-side nut mounting style means the jack installs from the outside of the panel — the gasket and lockwasher seal the opening and prevent rotation. The kit includes the nut and lockwasher, so no separate hardware order is needed for a single-port install.

Frequently asked questions

What is the impedance of the 5221221-5 connector?

The 5221221-5 is a 75 Ohm BNC jack, designed for 75 Ohm systems such as broadcast video and CCTV.

Does the 5221221-5 include all mounting hardware?

Yes, the 5221221-5 is a 7-piece kit that includes the connector, contact, ferrule, gasket, lockwasher, nut, and sleeve — everything needed for a single bulkhead termination.
