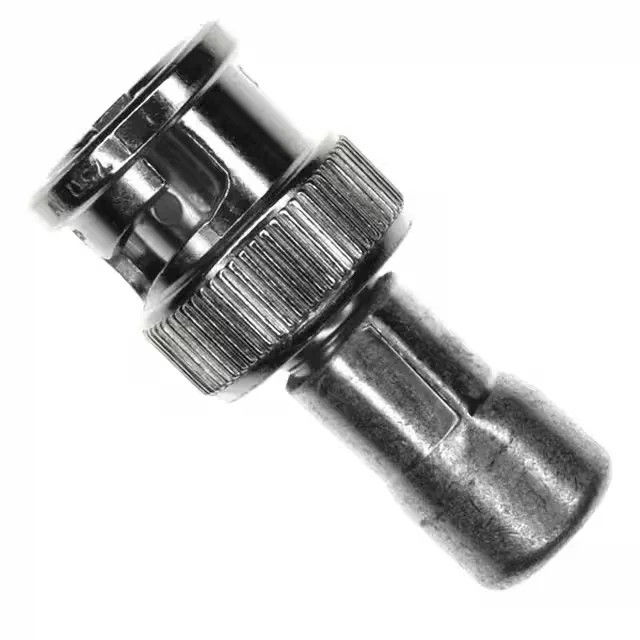

5221629-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5221629-5 BNC Plug, 75 Ohm, Obsolete

MPN5221629-5
Obsolete

TE Connectivity BNC plug, male pin, 75 Ohm impedance, free-hanging cap mount, gold-plated brass contacts, nickel body finish, Box package.

$11.4100Ref. price · indicative, final on quote
5221629-5 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5221629-5 Technical Specifications
ParameterValue
Mounting typeFree Hanging, Cap
Connector typePlug, Male Pin
Body materialBrass
Contact materialBrass
Dielectric materialPolyethylene (PE)
PackageBox
Impedance75 Ohms
Body finishNickel
Contact finishGold

Product details

The 5221629-5: It is a free-hanging, cap-style connector, meaning it terminates the cable end and includes a protective cap that stays on until the connector is mated.

Sourcing Reality — Obsolete, Quoted to Order

The 5221629-5 is officially listed as Obsolete.

Termination and Field Use

The 5221629-5 is a crimp-type BNC plug — the centre pin crimps onto the coax centre conductor, and the ferrule (not included) crimps over the braid and jacket. The free-hanging cap design means it is intended for cable-end termination, not panel mounting. The protective cap keeps the centre contact and dielectric clean during installation and storage — caps stay on till you mate. Standard BNC crimp tools for RG-59 or RG-6 cable sizes work, but confirm the specific cable diameter against the ferrule range before committing.

Frequently asked questions

Where can I buy the 5221629-5?

The 5221629-5 is obsolete but can be sourced through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.

Is the 5221629-5 obsolete?

Yes, TE Connectivity lists the 5221629-5 as Obsolete. No direct replacement part number is provided.
