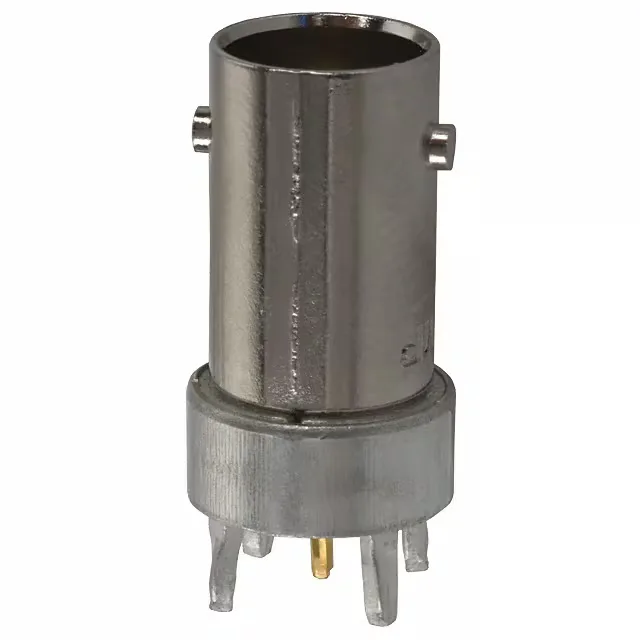

5222462-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5222462-1 BNC Jack, 75 Ohm, Press-Fit, 2 GHz, Obsolete

MPN5222462-1
Obsolete

TE Connectivity 5222462-1 BNC jack, female socket, 75 Ohm, 1 port, press-fit termination, through-hole mounting, nickel body, gold center contact, 500 mating cycles, 500 V, 2 GHz.

$9.5300Ref. price · indicative, final on quote
5222462-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5222462-1 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Operating temperature-65°C~125°C
Body materialZinc
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationPress-Fit
Contact terminationPress-Fit
Center contact platingGold

Product details

75 Ohm BNC Jack — Press-Fit, 2 GHz

Rated to 2 GHz, this jack covers SDI, composite video, and serial digital interfaces up to 3G-SDI comfortably within its bandwidth. The bayonet lock gives a quarter-turn mate that holds under cable strain without tools.

Press-Fit Termination — Solderless Assembly

That eliminates the solder joint as a failure point and keeps the assembly rework-friendly — a press-fit connector can be removed and replaced without desoldering.

Obsolete — Sourcing the 5222462-1

No official replacement order code is on record from the manufacturer. For a BOM that calls this exact part number, the supply path runs through independent distribution surplus and broker channels — stock is confirmed at quote time against an RFQ. If you are designing a new board, a 75 Ohm BNC jack in the same press-fit footprint from TE's active portfolio is the practical next step; the 5222462-1 datasheet and mechanical drawing are the reference for the hole pattern and panel cut-out.

Frequently asked questions

Where can I buy the 5222462-1?

The 5222462-1 is obsolete and sourced through independent distribution against an RFQ. Availability and current pricing are confirmed at quote time — submit an RFQ for your target quantity.

Is the 5222462-1 obsolete?

Yes, TE Connectivity lists the 5222462-1 as obsolete. No official replacement part number has been issued by the manufacturer.
