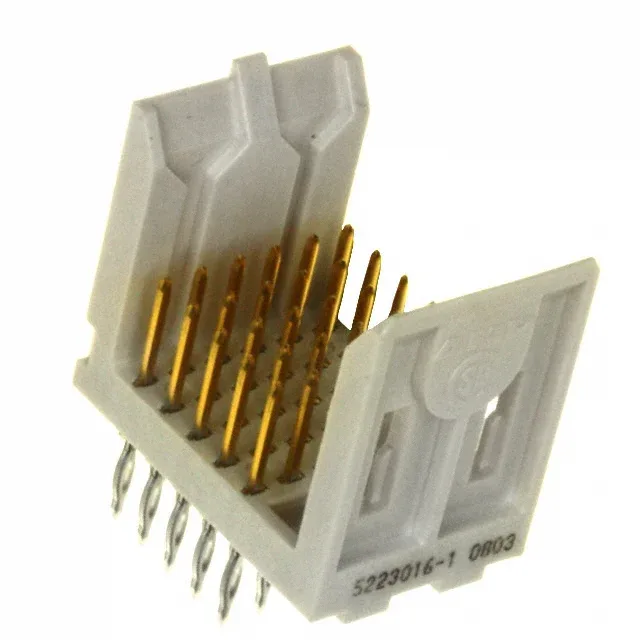

TE Connectivity 5223016-1 Z-PACK Header, 30 Pos, 2.00mm

MPN5223016-1
Active

TE Connectivity Z-PACK Futurebus header, 30 positions, 5 rows, 0.079" (2.00mm) pitch, press-fit, through hole, gold contacts, natural housing.

$9.7100Ref. price · indicative, final on quote
5223016-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5223016-1 Technical Specifications
ParameterValue
SeriesZ-PACK
Mounting typeThrough Hole
Connector typeHeader, Male Pins
Voltage rating30V
Operating temperature-55°C ~ 125°C
ColorNatural
Material flammability ratingUL94 V-0
Pitch0.079\" (2.00mm)
PackageTube
TerminationPress-Fit
Contact finishGold
Rows5
Positions30

Product details

Z-PACK Futurebus Header, Press-Fit, 30 Circuits

The TE Connectivity 5223016-1 is a 30-position header from the Z-PACK series, designed for Futurebus backplane architectures. Rated for 30 V — a signal-level voltage that confirms this header sits in a logic or data path, not a power distribution rail.

Press-Fit Termination and Board Layout

The press-fit tail is designed for a through-hole PCB. No solder means no thermal stress on the housing or the board during assembly, and the compliant pin holds position in the plated through-hole with a gas-tight interface. For the board layout engineer, the 2.00 mm pitch across five rows demands a tight routing channel — expect to run traces between the outer rows on inner layers, with via-in-pad only if the stack-up allows.

Frequently asked questions

What is the pitch of the 5223016-1?

The 5223016-1 uses a 0.079" (2.00 mm) pitch across five rows, for a total of 30 positions.
