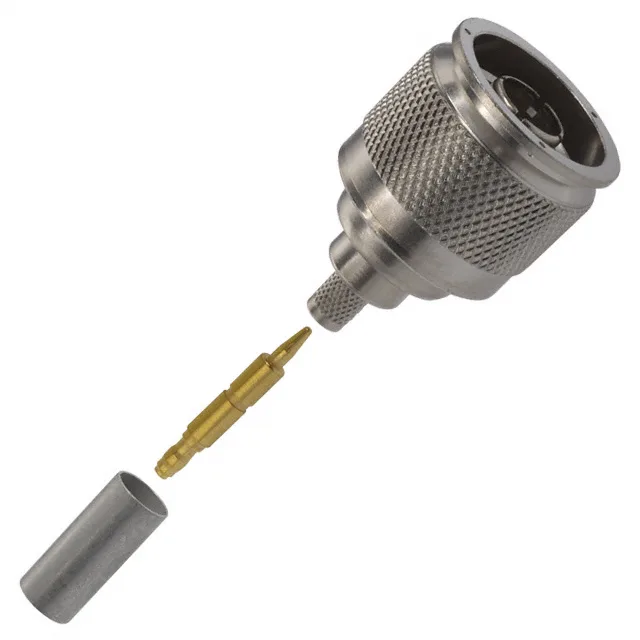

5225361-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5225361-4 N-Type Plug, 50 Ohm, 11 GHz, Obsolete

MPN5225361-4
Obsolete

TE Connectivity N-Type plug, male pin, 50 Ohms, 11 GHz, crimp termination for RG-142 cable, silver-plated brass body, gold-plated centre contact, free-hanging threaded coupling, bulk package includes connector, contact, and ferrule.

$7.3800Ref. price · indicative, final on quote
5225361-4 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5225361-4 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating1000 V
Frequency - max11 GHz
Cable groupRG-142, 142A, 142B
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50 Ohms
Body finishSilver
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

RF Performance and Mechanical Ratings

The 5225361-4: The 50-Ohm impedance holds through 11 GHz, making this plug suitable for microwave links, test equipment, and antenna feeds that stay within that band. The voltage rating of 1000 V gives generous headroom for RF power applications.

This plug is dimensioned for RG-142, 142A, and 142B cable — a double-shielded, PTFE-dielectric coax common in high-temperature and high-reliability RF runs. The centre contact and shield are both crimp-terminated; the ferrule compresses over the braid. The threaded coupling nut mates with any standard N-Type jack (female) with the same 5/8-24 UNEF thread.

Frequently asked questions

Where can I buy the TE 5225361-4 available via RFQ confirmation?

The 5225361-4 is obsolete and no longer in factory production, but we source it through independent distribution and surplus inventory. Submit an RFQ for current availability and pricing — stock is confirmed at quote time.

What is the replacement for 5225361-4?

TE Connectivity has not published an official successor order code for this kit. For a current-production N-Type plug compatible with RG-142 cable, check the TE N-Type crimp plug family — the pitch, impedance, and cable group are the same, but the exact part number differs. We can help cross-reference against your BOM on an RFQ.

Does 5225361-4 fit RG-142 cable?

Yes — the 5225361-4 is designed for RG-142, 142A, and 142B cable. The crimp ferrule and centre contact dimensions match that cable group.
