TE Connectivity BNC plug, male pin, 50 Ohm, 4 GHz, 500 V, crimp termination, for RG-58 cable, bayonet lock, 500 mating cycles.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-58, 58A, 58B, 58C |
| Operating temperature | -55°C ~ 85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|

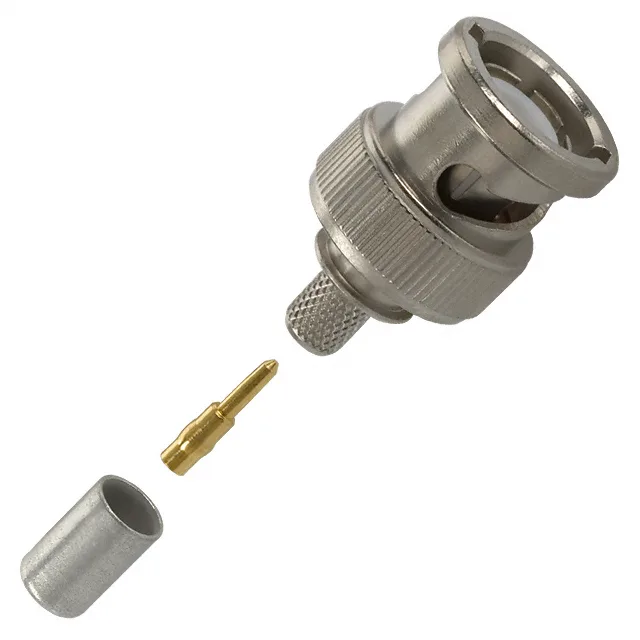

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 5225395-1: It is officially listed as Obsolete, meaning TE Connectivity no longer manufactures this exact order code.
The 500 V voltage rating covers typical instrumentation and low-power RF applications. The bayonet lock gives quick mate/unmate, and the 500 mating cycles mean it holds up to regular test-bench or field-swap duty without contact fretting.
For a functional equivalent, look for a BNC plug with 50 Ohm impedance, 4 GHz rating, and RG-58 crimp termination from the same or another manufacturer — confirm the mechanical fit and electrical specs before substituting.
Yes, the 5225395-1 is specified for cable group RG-58, 58A, 58B, and 58C. The crimp termination is designed for that cable diameter and dielectric.
