5225661-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5225661-1 N Type Plug, 50 Ohm, 11 GHz

MPN5225661-1
Obsolete

TE Connectivity N Type, 5225661-1, Plug, Male Pin, 50Ohm, 11 GHz, Crimp, Free Hanging, 1 Port, Bulk.

$8.4800Ref. price · indicative, final on quote
5225661-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5225661-1 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating1000 V
Frequency - max11 GHz
Cable groupRG-9, 214
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

N Type Plug for RG-9 and RG-214 — 50 Ohm, 11 GHz

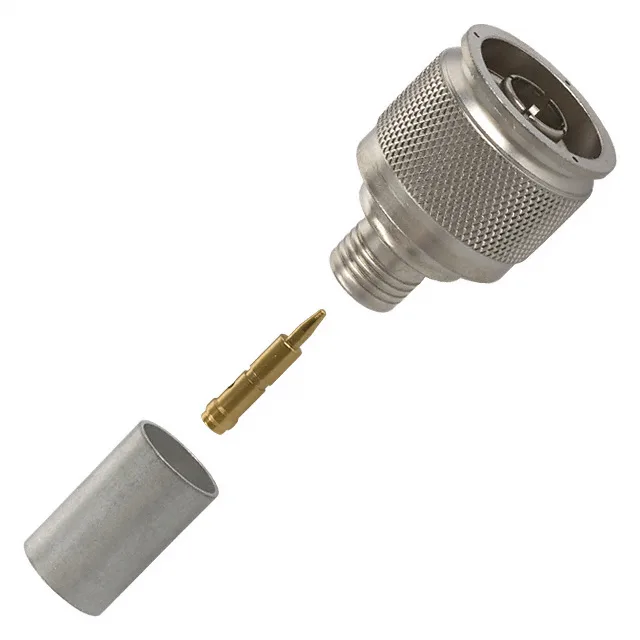

It delivers a 50 Ohm impedance path rated to 11 GHz, with a PTFE dielectric and a brass body finished in nickel. The kit includes the connector body, one gold-plated brass center contact, and one ferrule — everything needed for a single cable termination.

The 11 GHz frequency ceiling covers common bands including Wi-Fi (2.4/5 GHz), cellular (up to 6 GHz), and ISM applications — but not millimeter-wave bands above 11 GHz. The 1000 V rating is unusually high for an N-type connector, indicating it can handle high-power RF signals without breakdown. Gold plating on the center contact supports 500 mating cycles with stable contact resistance.

Lifecycle Status: Obsolete — Sourcing Guidance

No official replacement or successor part number is on record. Sourcing is limited to surplus inventory and the independent broker channel. For a BOM requiring this exact part, submit an RFQ for a same-day sourcing check.

Frequently asked questions

Where can I buy the 5225661-1?

The 5225661-1 is obsolete and sourced through independent distribution against an RFQ. Submit your BOM quantity for a same-day quote — availability and current pricing are confirmed at quote time.

Is the 5225661-1 obsolete?

Yes, the 5225661-1 carries an Obsolete lifecycle status from the manufacturer. No official replacement part has been designated.

What is the impedance of the 5225661-1?

The 5225661-1 has a 50 Ohm impedance, matching standard RF transmission lines and cables like RG-9 and RG-214.

What cable does the 5225661-1 fit?

The 5225661-1 is designed for RG-9 and RG-214 coaxial cables, which are common in high-power RF and test equipment applications.

How many mating cycles does the 5225661-1 have?

The 5225661-1 is rated for 500 mating cycles, supported by the gold-plated center contact.
