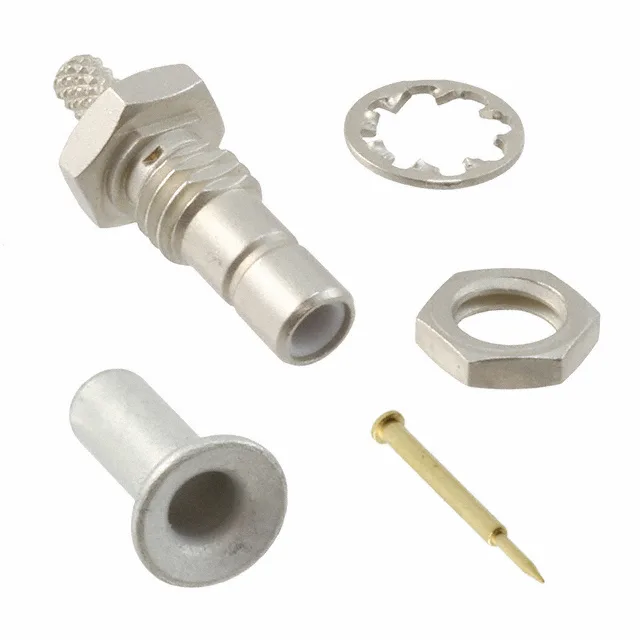

5228217-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5228217-1 SMB Jack, Male Pin, 50 Ohm, 4 GHz

MPN5228217-1
Obsolete

TE Connectivity SMB jack, male pin, 50 Ohm, 4 GHz, panel mount, snap-on, crimp termination, bulkhead, 500 mating cycles, -65°C~165°C, includes 5-piece kit.

$3.1800Ref. price · indicative, final on quote
5228217-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5228217-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Male Pin
Fastening typeSnap-On
Voltage rating335 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-174, 188, 316
Operating temperature-65°C~165°C
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.3dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

SMB jack for RG-174/188/316 — 50 Ohm, 4 GHz signal path

The TE Connectivity 5228217-1 is an SMB jack with a male pin centre contact, designed for 50 Ohm impedance and rated to 4 GHz. The kit includes 5 pieces: the connector body, one contact, one ferrule, one lockwasher, and one nut — everything needed for a single cable termination. The centre contact is brass with gold plating, and the body has a nickel finish.

Cable compatibility and field termination

This connector is specified for cable groups RG-174, RG-188, and RG-316 — 50 Ohm coax types. The crimp termination for both centre contact and shield makes it field-serviceable.

Insertion loss and voltage rating

Insertion loss is specified at 0.3 dB — a tight figure that keeps signal degradation low through the connector interface. The voltage rating is 335 V, which is generous for a 50 Ohm RF connector and gives headroom in applications where DC bias or power-over-coax is present on the same line.
