TE 5228226-3 BNC Jack-to-Jack Adapter, 50 Ohm, Obsolete

MPN5228226-3
Obsolete

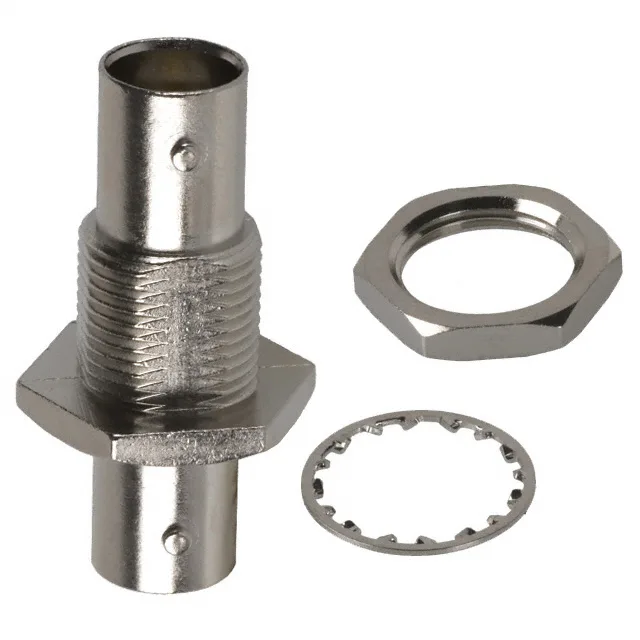

TE Connectivity 5228226-3 BNC jack-to-jack adapter, 50 Ohm, straight, panel mount bulkhead, nickel-plated zinc body, gold-plated phosphor bronze center contacts, includes connector, lockwasher, nut, bulk pack.

$9.2300Ref. price · indicative, final on quote
5228226-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5228226-3 Technical Specifications
ParameterValue
Adapter typeJack to Jack
Mounting typePanel Mount
Adapter seriesBNC to BNC
Fastening typeBayonet Lock, Bayonet Lock
Conversion typeSame Series
Mounting featureBulkhead
Body materialZinc
Dielectric materialPolyethylene (PE)
Center contact materialPhosphor Bronze
StyleStraight
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Center genderFemale to Female
Center contact platingGold
Convert to (Adapter end)BNC Jack, Female Socket
Convert from (Adapter end)BNC Jack, Female Socket

Product details

The adapter is built around a nickel-plated zinc body with a panel mount bulkhead feature, and the center signal path uses gold-plated phosphor bronze contacts, female on both ends.

What the 50 Ohm Rating Means for Signal Path Fit

The 50 Ohm impedance matches the characteristic impedance of standard BNC-terminated coax cables. A 50 Ohm adapter in the signal path preserves the impedance match from source to load.

Mechanical Installation — Panel Mount Bulkhead

The straight body style means the two BNC jacks align on opposite sides of the panel, giving a straight-through signal path. The bayonet lock fastening on both ends provides a quick quarter-turn mate with standard BNC plugs.

Frequently asked questions

Where can I buy 5228226-3 available via RFQ confirmation?

The 5228226-3 is an obsolete part sourced through independent distribution against an RFQ. Current availability and pricing are confirmed at quote time — submit your BOM quantity for a same-business-day quote.

What is the impedance of 5228226-3?

The 5228226-3 is a 50 Ohm adapter, matching the standard impedance for RF test equipment and telecommunications coax like RG58.

What mounting type does 5228226-3 use?

The 5228226-3 uses a panel mount with a bulkhead mounting feature. It passes through a panel cutout and secures with the included lockwasher and nut.

Is 5228226-3 compatible with RG58?

The 5228226-3 is a 50 Ohm BNC adapter, which is the standard impedance for RG58 coax. It will pass the signal through the panel bulkhead, but the cable termination requires a separate BNC plug on each end.
