TE Connectivity 5228980-7 BNC Jack, 50 Ohm, 4 GHz

MPN5228980-7
Active

TE Connectivity BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, panel mount bulkhead, crimp termination, RG-174/188/316, 7-piece kit, silver zinc body, gold center contact.

$6.6400Ref. price · indicative, final on quote
5228980-7 datasheet
StockIn Stock (53)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5228980-7 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-174, 188, 316
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolypropylene (PP)
Center contact materialBeryllium Copper
PackageBulk
Includes7 pcs - 1 Connector, 1 Bushing, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

BNC Bulkhead Jack Kit — 50 Ohm, 4 GHz, Panel Mount

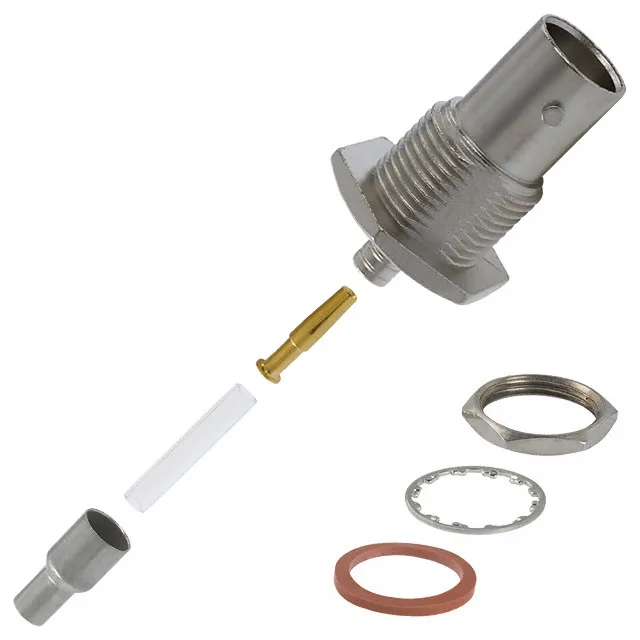

The 5228980-7: This is a complete 7-piece kit — it ships with the connector, bushing, contact, ferrule, gasket, lockwasher, and nut, so you have everything needed for a single RG-174, RG-188, or RG-316 cable termination in one package. The 500 V voltage rating covers most signal-level and low-power RF applications. The shield and contact both terminate via crimp, which gives a repeatable, tool-controlled termination for the cable braid and centre conductor.

Panel-mount bulkhead with front-side nut — the jack installs from the front of the panel and is secured with the included lockwasher and nut. The kit includes the crimp ferrule for the cable braid. The listed cable groups — RG-174, RG-188, RG-316 — are all 50-Ohm small-diameter coax.

Frequently asked questions

What cable types work with the 5228980-7?

The kit is designed for RG-174, RG-188, and RG-316 coaxial cables — all 50-Ohm small-diameter types with a nominal impedance match to the connector's 50-Ohm design.

Does the 5228980-7 kit include all mounting hardware?

Yes — the kit includes 7 pieces: the BNC jack, a bushing, a centre contact, a crimp ferrule, a gasket, a lockwasher, and a panel nut. No additional hardware is needed for a standard bulkhead installation.

What is the impedance and frequency rating of the 5228980-7?

It is a 50-Ohm BNC jack rated to 4 GHz maximum frequency, with a 500 V voltage rating.
