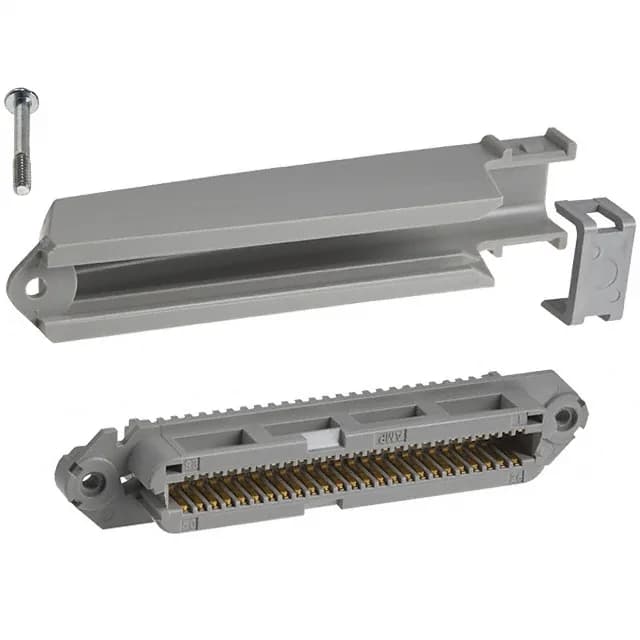

The housing includes a backshell and cable clamp, plus 4-40 threaded mounting hardware, so the mated pair can be bolted to a panel or chassis for strain relief. The 0.085-inch pitch is the series hallmark — tighter than a standard D-sub, which makes the 50 positions fit a more compact shell, but the IDC termination limits wire gauge to the fine-gauge ribbon or discrete wire the tooling is set up for.
The 5229913-4 is officially obsolete per TE's lifecycle record. There is no documented form-fit-function replacement from the manufacturer, so anyone maintaining a BOM that calls this part out is looking at the surplus and broker channel. If your assembly needs a drop-in, the CHAMP.085 series had multiple keying options and shell sizes, so a 50-position receptacle from the same series with a different flange or latch detail will not necessarily mate with the existing plug. Confirm the mating half's shell and keying before committing to an alternative.
IDC termination means the contacts pierce the insulation in one press operation — no wire stripping, no crimp tool. The 4-40 threaded flange lets you bolt the receptacle to a matching plug or to a panel cutout, taking the cable strain off the IDC joints. The backshell and cable clamp are included in the box, so you do not need to order them separately.
