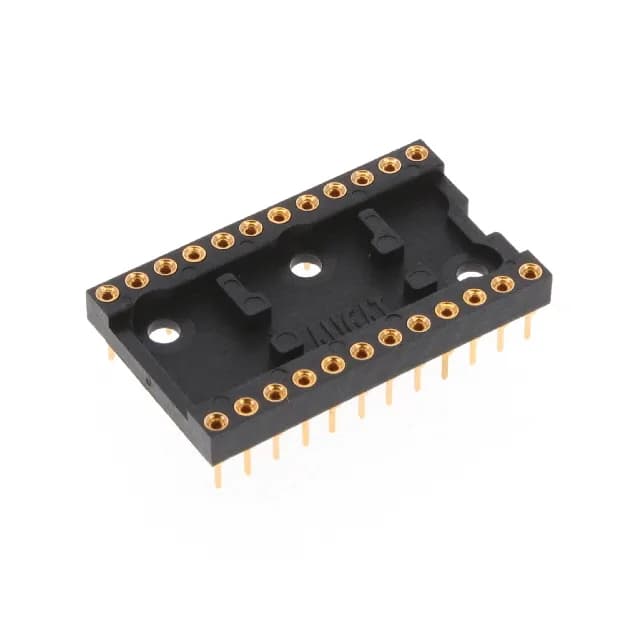

DIP socket — 24-pin, closed frame
The 524-AG10D-ES: Mating contacts are beryllium copper with 25.0µin (0.63µm) gold finish, rated for an operating range of -55°C to 125°C and contact resistance of 10mOhm.
524-AG10D-ES TE Connectivity DIP Socket 24-Pin Obsolete
MPN524-AG10D-ES
Obsolete
TE Connectivity AMP Series 500 DIP socket, order code 524-AG10D-ES, 24 positions (2 x 12), 0.100" (2.54mm) pitch, gold-plated beryllium copper mating contacts, through-hole solder termination, closed-frame construction.
$14.9533Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.4\" (10.16mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 24 (2 x 12) |
Product details
Frequently asked questions
Who supplies the 524-AG10D-ES and how is it quoted?
The 524-AG10D-ES is quoted to order against the BOM quantity through independent surplus channels.
