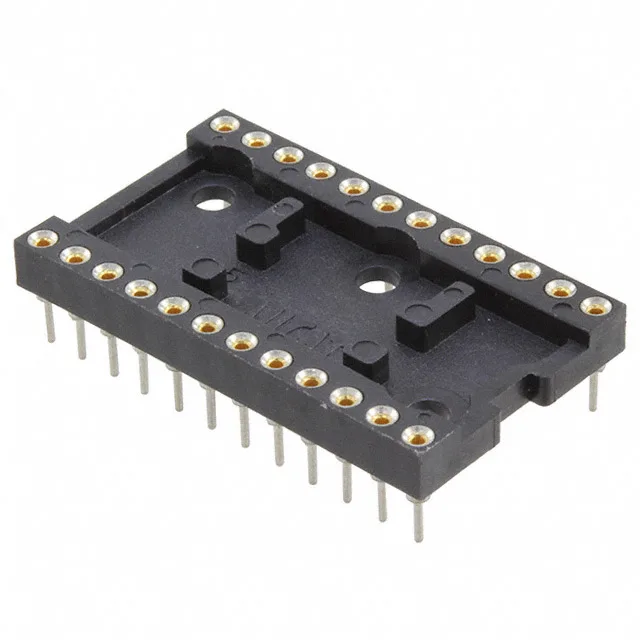

TE Connectivity AMP Connectors Series 500 DIP header, order code 524-AG11D-ES, 24 positions (2 x 12), 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination, closed frame, bulk packaging.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polyester |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Closed Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 24 (2 x 12) |
The 524-AG11D-ES is the 24-position member of TE's Series 500 DIP header line, arranged as 2 rows on 0.600" (15.24 mm) row spacing.
A board spin is required for any functional replacement.
The housing material is rated UL94 V-0.
