TE Connectivity AMP Connectors 52421-1
MPN52421-1
Active

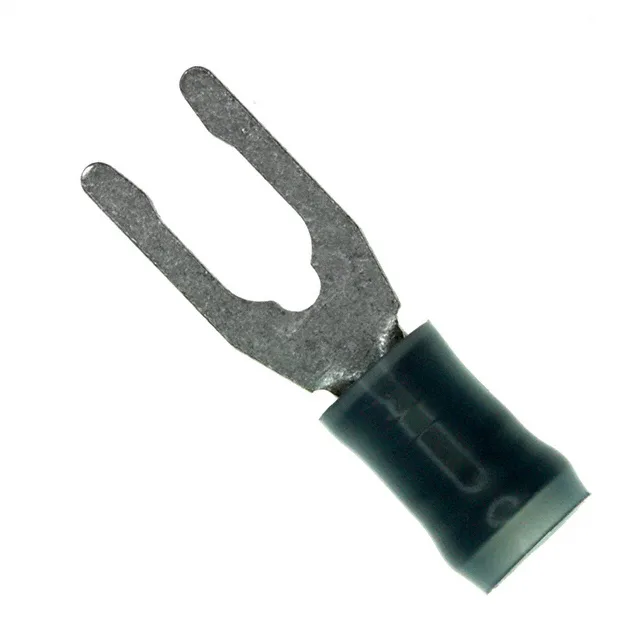

CONN SPADE TERM 14-16AWG #8 BLU
$0.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.281\" (7.14mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.979\" (24.87mm) |
| Insulation diameter | 0.115\" ~ 0.170\" (2.92mm ~ 4.32mm) |
| Length - termination | 0.414\" (10.52mm) |
| Tongue inside opening | 0.164\" (4.17mm) |
| Length - ring center to termination | 0.270\" (6.86mm) |
