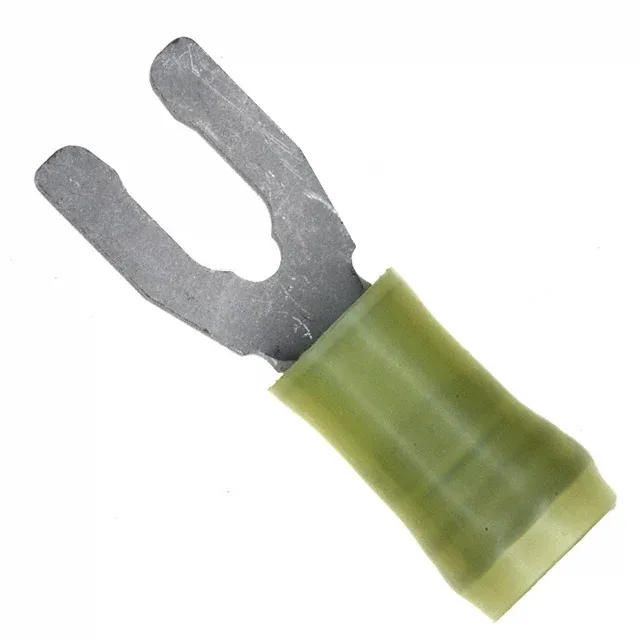

TE Connectivity AMP Connectors 52431-3
MPN52431-3
Active
CONN SPADE TERM 10-12AWG #8 YEL
$0.9Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.174\" (29.82mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
| Length - termination | 0.601\" (15.27mm) |
| Tongue inside opening | 0.164\" (4.17mm) |
| Length - ring center to termination | 0.273\" (6.93mm) |
