TE Connectivity AMP Connectors 531230-3 — Pin Headers, Sockets & Housings

531230-3 TE Connectivity Shunt, 0.200" Pitch, 2 Position

MPN531230-3
Active

TE Connectivity AMP 531230-3, 0.200" (5.08mm) pitch, 2 (1x2) position female socket shunt, open top, gold 30.0µin contact finish, rated 3A, UL94 V-0 black polyester housing.

$2.0370Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 531230-3 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

531230-3 specifications
ParameterValue
TypeOpen Top
Current rating3A
ColorBlack

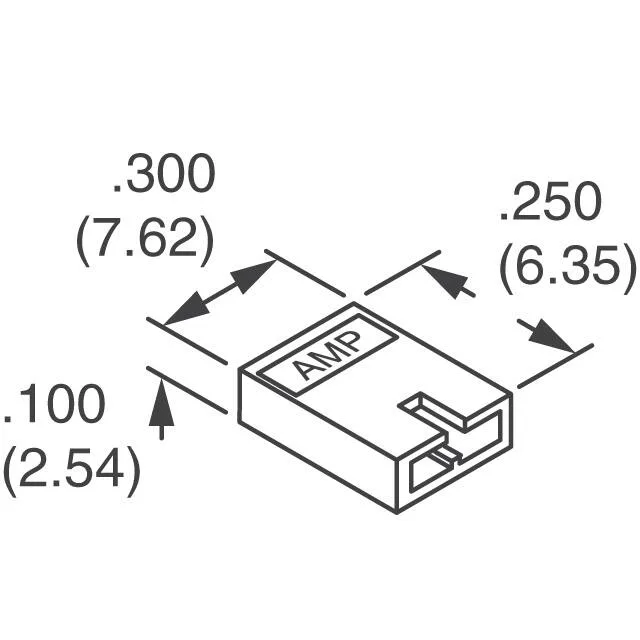

Height0.250\" (6.35mm)
Housing materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)
GenderFemale Sockets
PackageBulk
Contact finishGold
Contact finish thickness30.0µin (0.76µm)
Number of positions or pins2 (1 x 2)

Product details

The 531230-3: The 0.200" (5.08mm) pitch sets the footprint — this shunt bridges two adjacent pins on a male header with the same spacing. Open-top design means the contact area is visible from above — useful for probing signals or visually confirming the shunt is fully seated on the header pins.

Current, Material, and Compliance

For a 2-position shunt, the total bridge current is 3A; derate if ambient exceeds the standard operating range.

Supplied by TE Connectivity AMP Connectors, part of the 531230 base series. The 2-position, 0.200" pitch, gold finish variant is the 531230-3.

Frequently asked questions

Where can I buy 531230-3 and how is it quoted?

The 531230-3 is sourced through independent distribution. Quoted to order against your BOM quantity — no stock-holding claim. Availability and current pricing confirmed at RFQ time.

What is the pin pitch of 531230-3?

0.200" (5.08mm) pitch. This shunt fits a male header with the same pin spacing.

Is 531230-3 RoHS compliant?

Yes, ROHS3 Compliant per the manufacturer.

Can 531230-3 be used on a 0.1" header?

No — the pitch is 0.200" (5.08mm), not 0.1" (2.54mm). It will not fit a 0.1" header.

What is the difference between 531230-3 and 531230-2?

The difference is the contact finish thickness. The 531230-3 has 30.0µin gold; the 531230-2 has a different plating grade. Both share the same 0.200" pitch, 2-position, open-top design.
